8WD4615-5JH37
495,00 €
In Stock
Electronically configurable signaling column, 15 segments, with acoustics, M1…
In Stock
Description
- Type: Electronically configurable signaling column
- Model: SIRIUS 8WD4
- Segments: 15 segments
- Acoustics: Yes
- Connection: M12 plug, 8-pole
- Signal volume: Up to 105 dB
- Protection class: IP 66, IP 69K
- LED segments: Available with either 9 or 15 segments
- Connection options: IO-Link or conventional 24 V connection
- Flexible parameterization of individual LED segments for customized signaling.
- Easy mounting without special tools or wiring.
- Adaptable to changing requirements via IO-Link or M12 plug without the need for conversion or retrofit.
- Modern yet rugged industrial design suitable for extreme conditions.
- Preconfigured signaling columns for quick deployment.
- Various optional accessories for mounting.

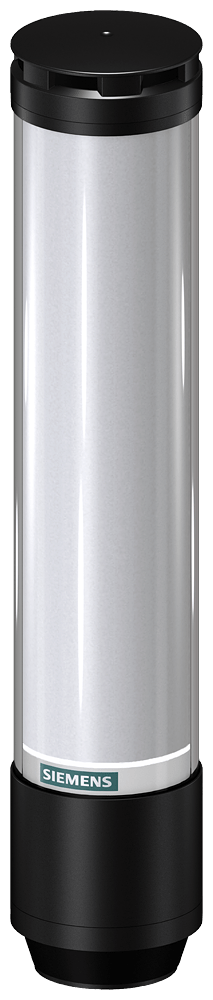

Electronically configurable signaling column
The SIRIUS 8WD4 is designed for visual and/or acoustic signaling in challenging environments, suitable for both indoor and outdoor installations.
Technical details:
Customer benefits:
Disclaimer: Generated by AI.
Additional information
| Dimensions | 7,2 × 37,2 cm |
|---|---|
| PriceGroup | 42K |
| Product page (external) | Open link ↗ |
