6SL5310-1BE17-0DF0

Description

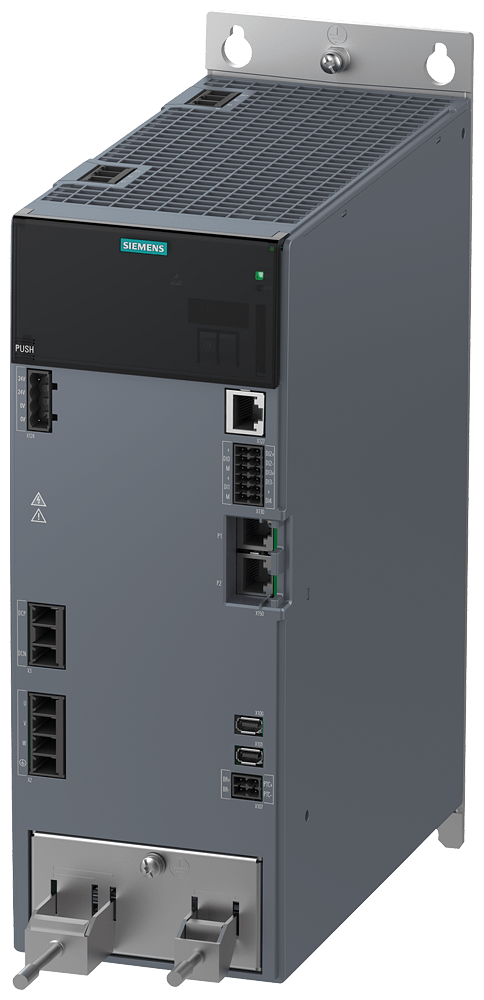

Sinamics S210

SINAMICS S210 is a single-axis servo drive designed for applications requiring high dynamic response in various industries.

Technical details:

• Input voltage: 200-480 V 3AC -10%/+10%
• Input current: 17.9 A
• Frequency: 45-66 Hz
• Output voltage: 0
• Output current: 15.0 A
• Output frequency: 0-550 Hz
• Motor power: 7.0 kW
• Degree of protection: IP20
• Frame size: C 105 x 322 x 223 (WxHxD)
• Compatible with SIMOTICS S-1FK2 synchronous servomotors
• Connection using PROFINET RT/IRT
• Coated or partially coated boards as standard
• Single-phase voltage range: 200 V to 240 V, power range: 0.1 kW to 0.75 kW
• Three-phase voltage range: 200 V to 480 V, power range: 0.4 kW to 7.0 kW

Customer benefits:

• High dynamic response suitable for packaging machines, handling systems, wood and plastic processing, and digital printing.
• Flexible and versatile for worldwide use with all usual certifications, including UL certification for North America.
• Simplified commissioning with an integrated web server and automatic identification of the motor and encoder.
• Faults and alarms displayed on the front cover display with extensive diagnostics via the integrated web server.
• Integrated safety functions provide effective protection for persons and machines.
• Individual adaptation to specific requirements based on various options.

Disclaimer: Generated by AI.
