6SL3223-0DE31-1BG1

Description

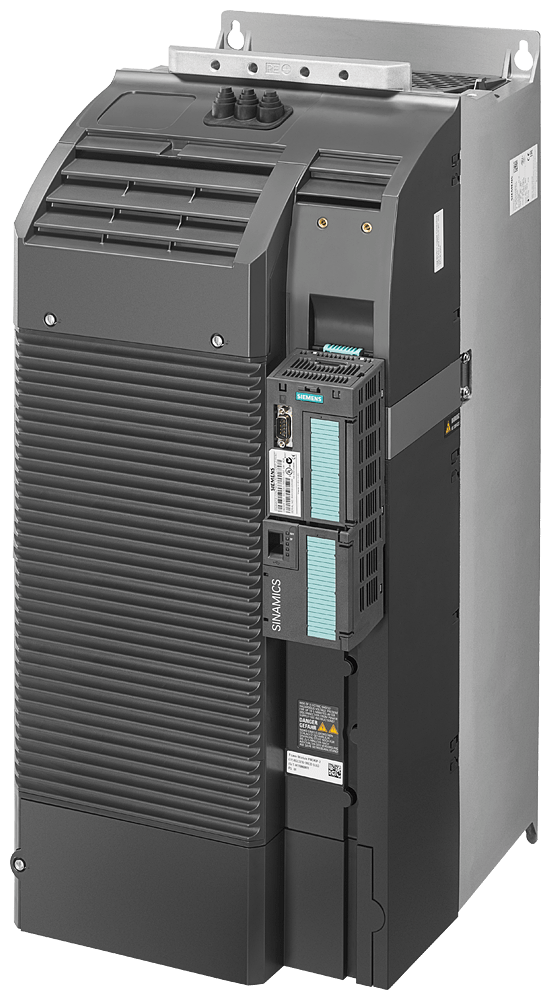

Sinamics g120p power module pm230

The SINAMICS G120P Power Module PM230 is designed for building management systems with robust protection features and integrated filters.

Technical details:

• Degree of protection: IP55/UL Type 12
• Input voltage: 380-480 V 3 AC +10/-10%
• Frequency: 47-63 Hz
• Power low overload: 11kW at 150% 3s, 110% 57s, 100% 240 s
• Ambient temperature: -10 to +40 °C (LO)
• Dimensions: 620 x 230 x 249 (HxWxD)
• Firmware version: V4.3.2 or higher
• Frame sizes: FSA up to FSF
• Integrated Class B filter

Customer benefits:

• High degree of protection enables use in tough environments, with operation at ambient temperatures of up to 60 degrees.
• Produces only slight line harmonic distortions without additional measures and ensures faults are acknowledged automatically after power failure.
• Available for powers ranging from 0.37 kW to 90 kW for panel mounting outside the control cabinet.
• Included accessories enhance EMC-compliant connections for power and control cables.
