6SL3210-5HB10-2UF0

Description

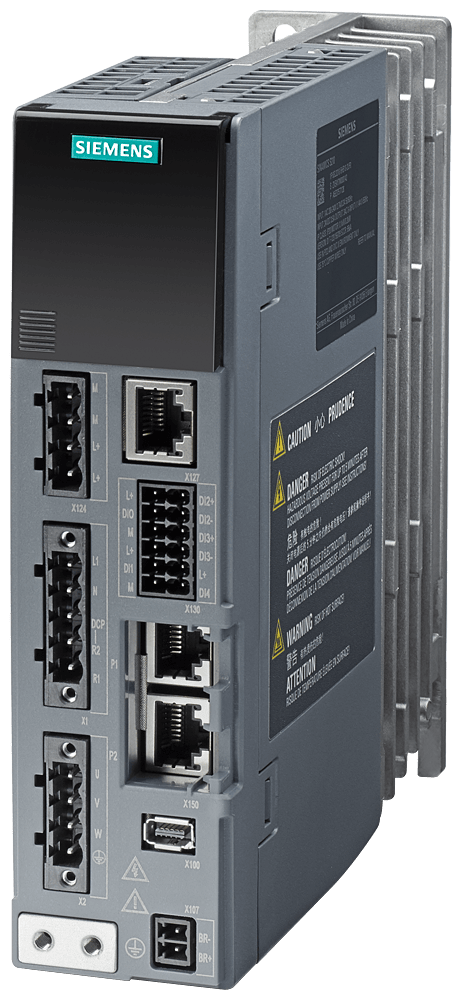

SINAMICS S210

SINAMICS S210 servo converters are designed for high dynamic response applications in packaging machines, handling systems, wood and plastic processing, and digital printing.

Technical details:

• Input voltage: 200-240V 1AC; -10%/+10%; 2.7A; 45-66Hz
• Output voltage: 0-input V; 1.4A; 0-550Hz
• Motor: 0.2 kW
• Degree of protection: IP20
• Frame size: A
• Dimensions: 45 x 170 x 170 (WxHxD)
• Flexibility: worldwide use with all standard certifications, UL-certified for North America
• Servo control with/without Dynamic Servo Control (DSC)
• Integrated one-cable interface (OCC)
• Integrated web server for commissioning and diagnostics
• Integrated safety functions: Safety Integrated Basic Functions as standard, Safety Integrated Extended Functions available as an option
• Available in single-phase voltage range from 200 V to 240 V, power range 0.1 kW to 0.75 kW, frame sizes FSA to FSC
• Three-phase converters available in voltage range from 200 V to 480 V, power range 0.4 kW to 7.0 kW, frame sizes FSA to FSC

Customer benefits:

• Shorter engineering times with SIMATIC S7-1500/T-CPU and SIMOTION as controllers
• Simple connection using one cable for the SIMOTICS S-1FK2 motor
• Automatic identification of motor and encoder simplifies operation
• Extensive diagnostics with plain text messages
• Protection against dust, humidity, etc., with coated or partially coated boards
• Energy exchange between axes through DC links of up to six converters
