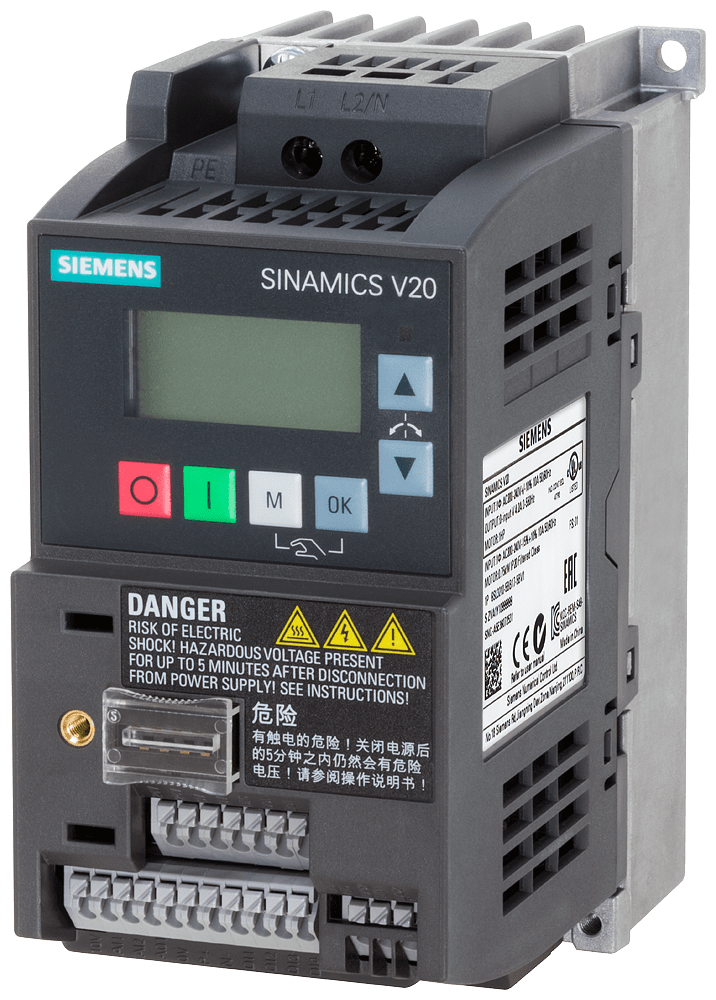

6SL3210-5BB17-5UV1

Description

SINAMICS V20 200-240V 1AC -10/+10% 47-63Hz

The SINAMICS V20 converter is designed for industrial and commercial applications, offering robust, efficient performance in the voltage range of 1AC 200 V to 240 V.

Technical details:

• Rated power: 0.75 kW with 150% overload for 60 sec.
• Unfiltered I/O: 4 DI, 2 DO, 2 AI, 1 AQ
• Fieldbus: USS/MODBUS RTU with built-in BOP
• Protection: IP20/ UL
• Open size: QB 68x142x128 (WxHxD)
• Power range: 0.12 kW to 30 kW
• Operating voltages: 1AC 200 V to 240 V, 3AC 380 V to 480 V

Customer benefits:

• Short commissioning times and ease of operation.
• Robustness and cost efficiency.
• Operates straight out-of-the-box without additional modules.
• Equipped with a control technique for optimum energy efficiency.
• Displays actual energy consumption with integrated energy-saving functions.
• Keep-Running mode for stable operation despite fluctuating line supply conditions.
• Simple system configuration with predefined macros and preconfigured function blocks from the TIA Portal.
• Technical and cost-effective alternative to the Micromaster 420 frequency converter.
