6SL3210-1PH31-4UL0

Description

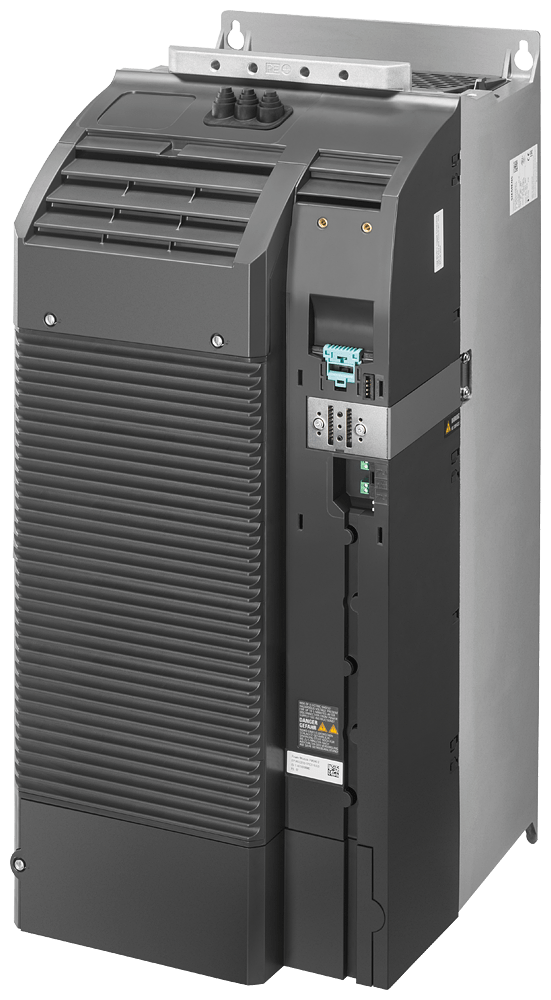

Sinamics g120 power module pm240-2 without filter with built in braking chopper

The SINAMICS Power Module PM240-2 is designed for standard applications and machinery construction as part of the modular SINAMICS G120 converters.

Technical details:

• Input: 3AC 500-690V +10/-20% 47-63Hz
• Output high overload: 110 kW for 200% 3s, 150% 57s, 100% 240s ambient temp -20 to +50 deg C (HO)
• Output low overload: 132 kW for 150% 3s, 110% 57s, 100% 240s ambient temp -20 to +40 deg C (LO)
• Dimensions: 708 x 305 x 357 (HxWxD)
• Protection class: IP20
• Control unit and panel: Not included
• Approved for CU firmware – version V4.7 HF8
• Power range: 0.55 kW to 250 kW
• Voltage versions: 200 V, 400 V, and 690 V
• Available in unfiltered version or with integrated line filter class A
• Frame sizes: FSA to FSG
• Push-through variant available for optimum heat loss dissipation
• Cable lengths: Up to 450 m (frame size FSF/FSG)

Customer benefits:

• Ideally suited for a wide range of applications in general machinery construction.
• Flexible combination with various Control Units, including CU230-2, CU240x-2, and CU250S-2.
• Safety Integrated options available.
• Rugged design ensures compliance with EMC guidelines.

Disclaimer: Generated by AI.
