6SL3210-1KE23-8AF1

Description

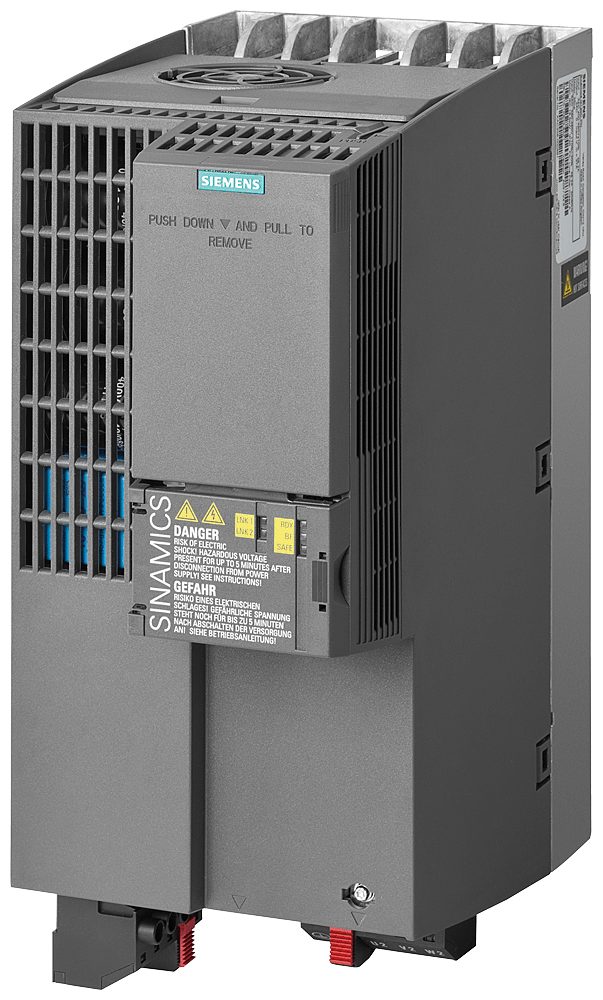

SINAMICS G120C

The SINAMICS G120C is a versatile, user-friendly, and compact frequency converter designed to meet the needs of various applications such as conveyor belts, mixers, and pumps.

Technical details:

• Rated power: 3AC 380-480V +10/-20%
• Frequency: 47-63Hz
• Low overload: 18,5kW at 150% 3s, 110% 57s, 100% 240s
• High overload: 15,0kW at 200% 3s, 150% 57s, 100% 240s
• Integrated filter: class A
• External 24V I/O interface: 6DI, 2DO, 1AI, 1AO, 1Mot_t Safe Torque Off
• Integrated Fieldbus: PROFINET-PN
• Protection: IP20/ UL OPEN TYPE
• Size: FSC 295x140x205 (HXWXD)

Customer benefits:

• Certified safety function Safe Torque Off (STO) integrated, no additional external components required.
• Quick and simple commissioning/operation via PC, Basic Operator Panel, Intelligent Operator Panel, or wirelessly using the SINAMICS G120 Smart Access Module.
• Networked via standard fieldbus systems (PROFINET, PROFIBUS).
• Card slot for cloning parameter sets for intuitive series commissioning.
• Equipped with precise energy-optimized vector control SLVC and features automatic flux reduction for enhanced energy efficiency.
• Supports various options for adaptability to user requirements, including operator panels, connecting cables, line filters, braking resistors, and line reactors.
• Integrates seamlessly with Totally Integrated Automation (TIA) and SIMATIC controllers.
• Replaces the MICROMASTER 420 converter.

Disclaimer: Generated by AI.
