6SL3210-1KE18-8UF1

Description

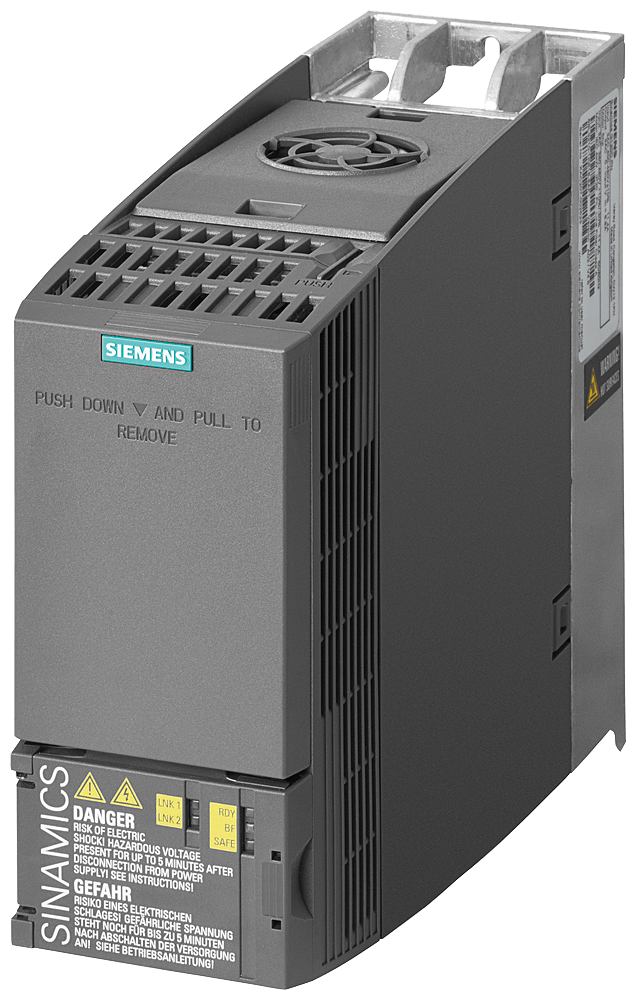

SINAMICS G120C

The SINAMICS G120C frequency converter is versatile, user-friendly, and compact, designed to meet the requirements of various applications like conveyor belts, mixers, pumps, fans, and compressors.

Technical details:

• Rated power 3AC 380-480V +10/-20%
• Frequency: 47-63Hz
• Low overload: 4,0kW at 150% 3s, 110% 57s, 100% 240s
• High overload: 3,0kW at 200% 3s, 150% 57s, 100% 240s
• Unfiltered external 24V I/O interface: 6DI, 2DO, 1AI, 1AO, 1Mot_t
• Safe Torque Off integrated Fieldbus: PROFINET-PN
• Protection: IP20/ UL OPEN TYPE
• Size: FSA 196X73X200(HXWXD)
• Power range: 0.55 kW up to 132 kW

Customer benefits:

• Certified safety function Safe Torque Off (STO) with no additional external components required.
• Quick and simple commissioning/operation via PC, Basic Operator Panel, Intelligent Operator Panel, or wirelessly using the SINAMICS G120 Smart Access Module.
• Networkable via standard fieldbus systems (PROFINET, PROFIBUS) with card slot for cloning parameter sets for intuitive series commissioning.
• Energy-efficient with precise energy-optimized vector control SLVC and automatic flux reduction.
• Individually adaptable to user requirements with various options and accessories.
• Integral part of Totally Integrated Automation (TIA) and optimized to work with SIMATIC controllers.
• Replaces the MICROMASTER 420 converter.
