6SL3210-1KE18-8AF1

Description

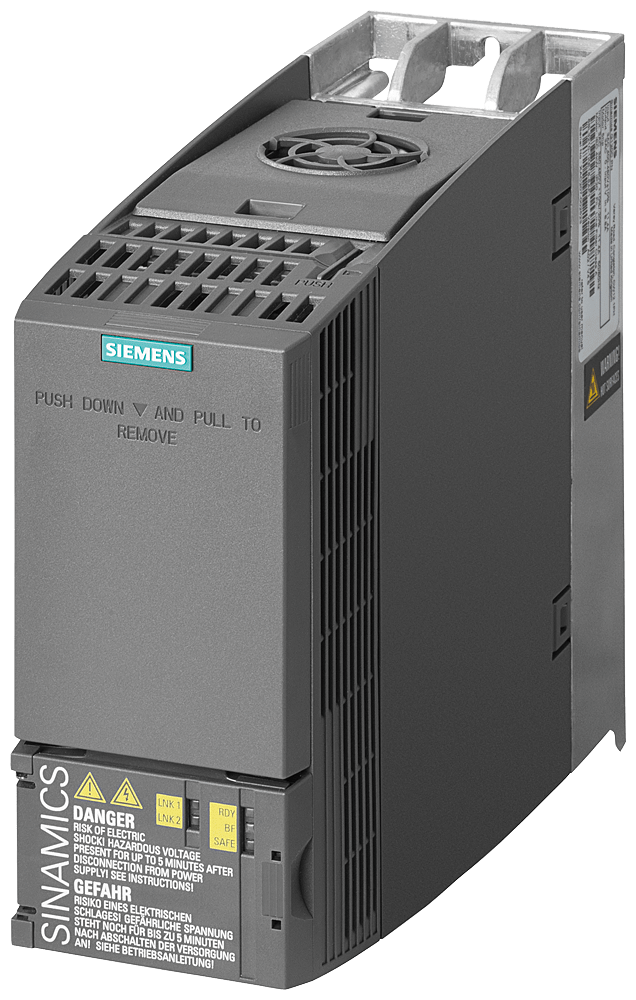

Sinamics g120c

The SINAMICS G120C is a versatile, user-friendly, and compact converter designed to meet the requirements of various applications like conveyor belts, mixers, pumps, fans, and compressors.

Technical details:

• Rated power: 3AC 380-480V +10/-20% 47-63Hz
• Low overload: 4.0kW at 150% 3s, 110% 57s, 100% 240s
• High overload: 3.0kW at 200% 3s, 150% 57s, 100% 240s
• Integrated filter: class A
• External 24V I/O interface: 6DI, 2DO, 1AI, 1AO, 1Mot_t Safe Torque Off
• Integrated Fieldbus: PROFINET-PN
• Protection: IP20/ UL OPEN TYPE
• Size: FSA 196X73X200(HXWXD)

Customer benefits:

• Certified safety function Safe Torque Off (STO) ensures safety without needing additional external components.
• Quick and simple commissioning/operation via USB, Basic Operator Panel, Intelligent Operator Panel, or SINAMICS G120 Smart Access Module.
• Networked capability via standard fieldbus systems (PROFINET, PROFIBUS) with a card slot for cloning parameter sets for intuitive series commissioning.
• Equipped with energy-optimized vector control SLVC and features automatic flux reduction for boosted energy efficiency.
• Available in seven frame sizes with a power range extending from 0.55 kW up to 132 kW.
• Can be individually adapted with various options including operator panels, connecting cables, filters, resistors, reactors, and accessories.
• Integrates seamlessly with Totally Integrated Automation (TIA) and works optimally with SIMATIC controllers.
• Replaces the MICROMASTER 420 converter.
