6SL3210-1KE17-5AF1

Description

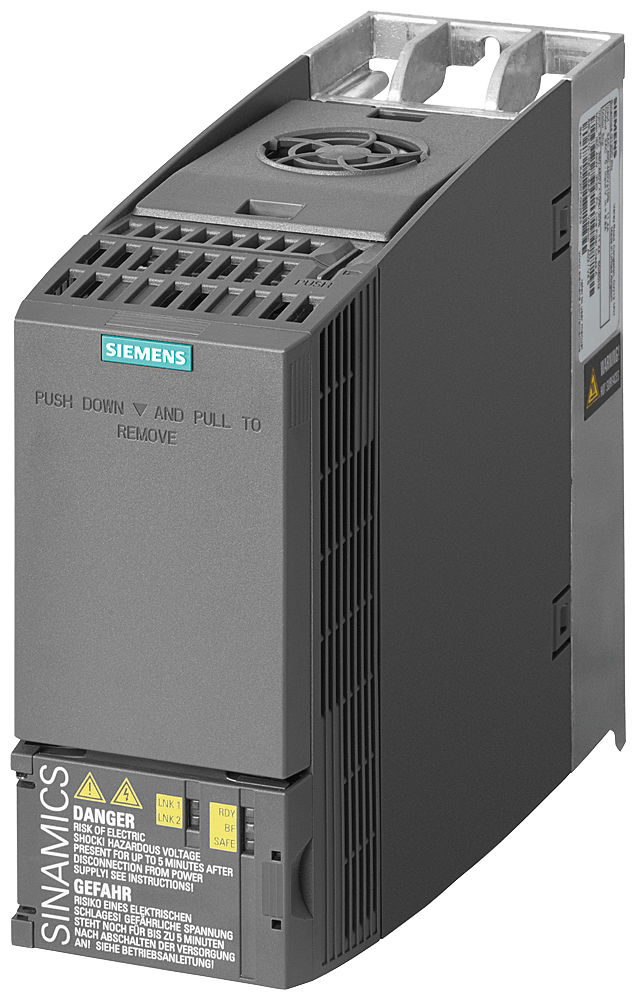

Sinamics G120C

The SINAMICS G120C is a versatile, user-friendly, and compact drive designed to meet the demands of various applications such as conveyor belts, mixers, pumps, fans, and compressors.

Technical details:

• Rated power 3AC 380-480V +10/-20% 47-63Hz
• Low overload: 3.0kW at 150% 3s, 110% 57s, 100% 240s
• High overload: 2.2kW at 200% 3s, 150% 57s, 100% 240s
• Integrated filter class A
• External 24V I/O interface: 6DI, 2DO, 1AI, 1AO, 1Mot_t Safe Torque Off
• Integrated Fieldbus: PROFINET-PN
• Protection: IP20/ UL OPEN TYPE
• Size: FSA 196X73X200(HXWXD)

Customer benefits:

• Certified safety function Safe Torque Off (STO), with no additional external components required
• Quick and simple commissioning/operation via PC, Basic Operator Panel, Intelligent Operator Panel, or wirelessly with SINAMICS G120 Smart Access Module
• Networkable via standard fieldbus systems (PROFINET, PROFIBUS)
• Card slot for cloning parameter sets for intuitive series commissioning
• Energy-efficient design with precise energy-optimized vector control SLVC and automatic flux reduction
• Individually adaptable with various options like operator panels, cables, line filters, braking resistors, line reactors, and further accessories
• Part of Totally Integrated Automation (TIA) and optimally compatible with SIMATIC controllers
• Replaces the MICROMASTER 420 converter
