6SL3210-1KE15-8AB2

Description

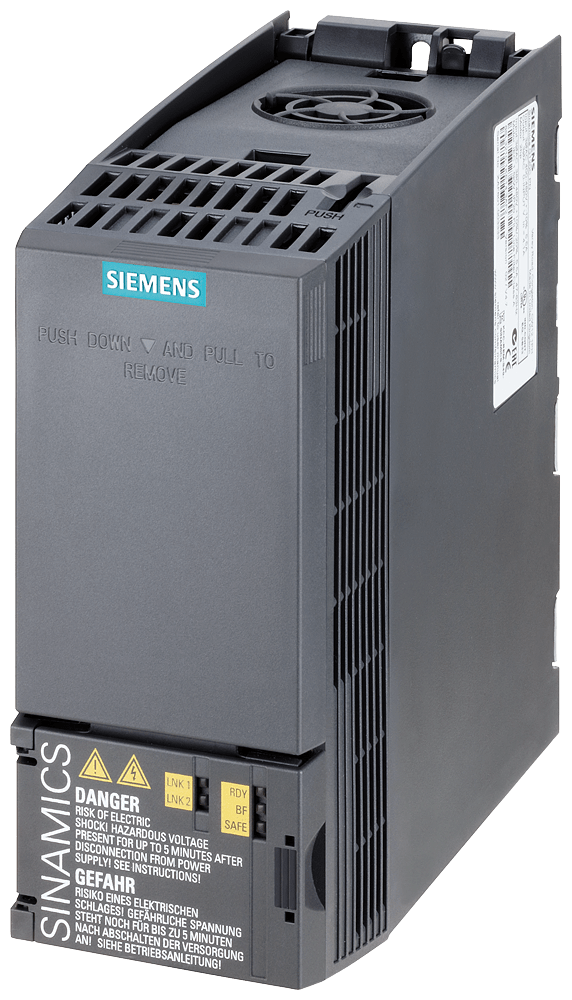

SINAMICS G120C

The SINAMICS G120C is a versatile and user-friendly frequency converter designed for various applications such as conveyor belts, mixers, pumps, fans, and compressors.

Technical details:

• Rated power: 3AC 380-480V +10/-20%, 47-63 Hz
• Low overload: 2.2 kW at 150% for 3s, 110% for 57s, 100% for 240s
• High overload: 1.5 kW at 200% for 3s, 150% for 57s, 100% for 240s
• Integrated filter: class A
• External 24V I/O interface: 6DI, 2DO, 1AI, 1AO, 1Mot_t
• Safe Torque Off: integrated
• Integrated Fieldbus: USS/MODBUS RTU
• Protection: IP20/UL OPEN TYPE
• Size: FSAA 173X73X155 (HXWXD)

Customer benefits:

• Certified safety function: Safe Torque Off (STO) with no additional external components required.
• Quick and simple commissioning/operation via PC, Basic Operator Panel, Intelligent Operator Panel, or wirelessly with SINAMICS G120 Smart Access Module.
• Can be networked via standard fieldbus systems (PROFINET, PROFIBUS).
• Features a card slot for cloning parameter sets for intuitive series commissioning.
• Equipped with precise energy-optimized vector control SLVC and automatic flux reduction for enhanced energy efficiency.
• Adapts to user requirements with various options such as operator panels, connecting cables, line filters, braking resistors, line reactors, and further accessories.
• Part of Totally Integrated Automation (TIA) and works optimally with SIMATIC controllers.
• Replaces the MICROMASTER 420 converter.
