6SL3210-1KE14-3AF2

Description

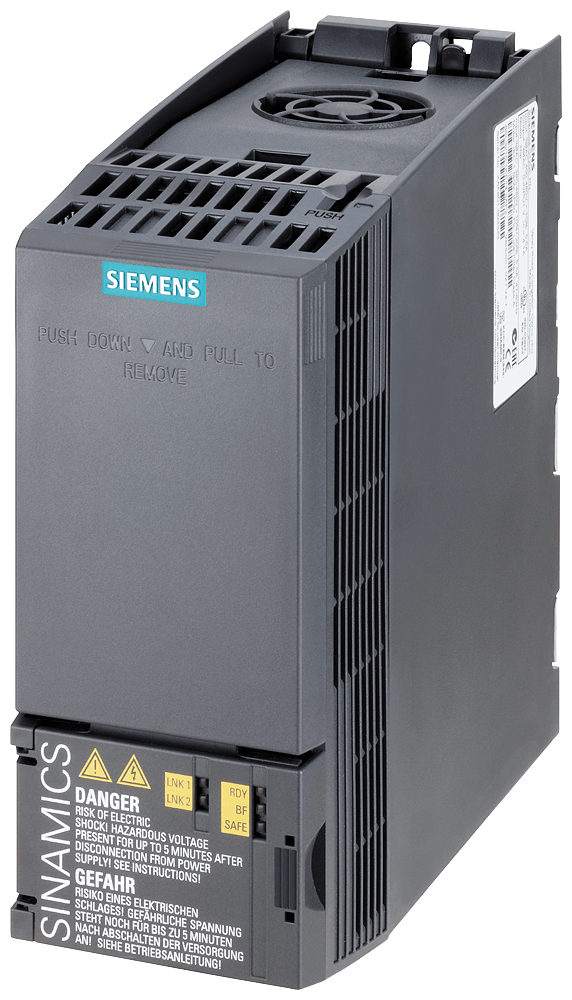

Sinamics G120C

The SINAMICS G120C is a versatile and compact frequency converter designed to meet the requirements of various applications such as conveyor belts, mixers, pumps, fans, and compressors.

Technical details:

• Rated power: 3AC 380-480V +10/-20%
• Frequency: 47-63Hz
• Low overload: 1.5kW at 150% for 3s, 110% for 57s, 100% for 240s
• High overload: 1.1kW at 200% for 3s, 150% for 57s, 100% for 240s
• Integrated filter: class A
• External 24V I/O interface: 6DI, 2DO, 1AI, 1AO, 1Mot_t Safe Torque Off
• Integrated Fieldbus: PROFINET-PN
• Protection: IP20/ UL OPEN TYPE
• Size: FSAA 173X73X160 (H X W X D)

Customer benefits:

• Certified safety function Safe Torque Off (STO) integrated, requiring no additional external components.
• Quick and simple commissioning/operation via PC, Basic Operator Panel, Intelligent Operator Panel, or wirelessly using the SINAMICS G120 Smart Access Module.
• Networked via standard fieldbus systems (PROFINET, PROFIBUS).
• Card slot for cloning parameter sets for intuitive series commissioning.
• Equipped with precise energy-optimized vector control SLVC and features automatic flux reduction to boost energy efficiency.
• Can be individually adapted with various options such as operator panels, connecting cables, line filters, braking resistors, line reactors, and further accessories.
• Part of Totally Integrated Automation (TIA) and works optimally with SIMATIC controllers.
• Replaces the MICROMASTER 420 converter.

Disclaimer: Generated by AI.
