6SL3210-1KE13-2UF2

Description

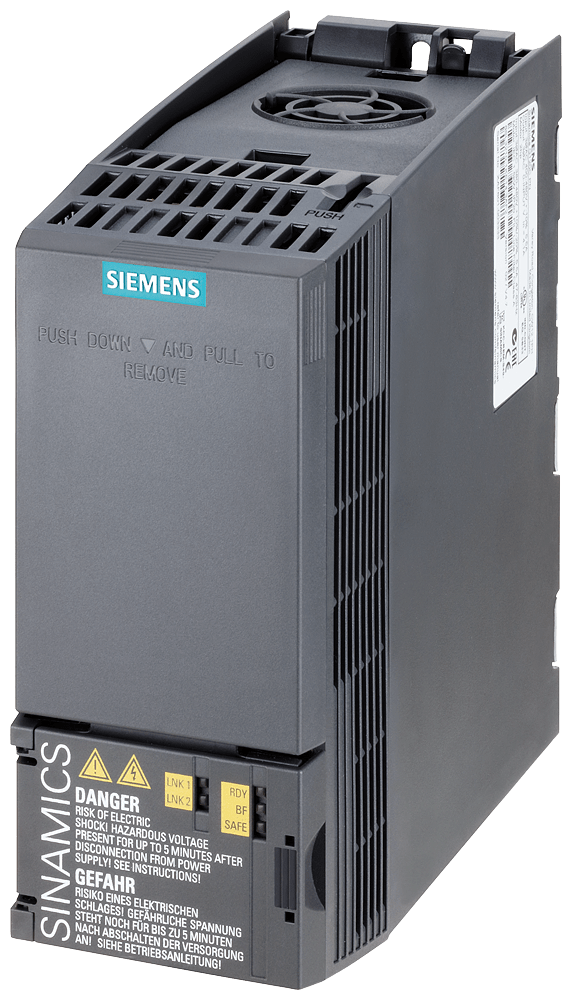

SINAMICS G120C

The SINAMICS G120C is a versatile, user-friendly, and compact frequency converter designed for various applications including conveyor belts, mixers, pumps, fans, and compressors.

Technical details:

• Rated power: 3AC 380-480V +10/-20%
• Frequency: 47-63Hz
• Low overload: 1.1kW at 150% 3s, 110% 57s, 100% 240s
• High overload: 0.75kW at 200% 3s, 150% 57s, 100% 240s
• Unfiltered external 24V I/O interface: 6DI, 2DO, 1AI, 1AO, 1Mot_t
• Safe Torque Off: integrated
• Fieldbus: PROFINET-PN
• Protection: IP20/ UL OPEN TYPE
• Size: FSAA 173X73X160(HXWXD)
• Power range: 0.55 kW up to 132 kW
• Compatible with Totally Integrated Automation (TIA)
• Replaces MICROMASTER 420 converter

Customer benefits:

• Certified safety function Safe Torque Off (STO) with no additional external components required.
• Quick and simple commissioning/operation via PC, Basic Operator Panel, Intelligent Operator Panel, or wirelessly with SINAMICS G120 Smart Access Module.
• Networkable via standard fieldbus systems (PROFINET, PROFIBUS).
• Card slot for cloning parameter sets for intuitive series commissioning.
• Equipped with precise energy-optimized vector control SLVC and features automatic flux reduction for enhanced energy efficiency.
• Various options available for individual user adaptation, including operator panels, connecting cables, line filters, braking resistors, line reactors, and further accessories.
