6SL3210-1KE13-2AB2

Description

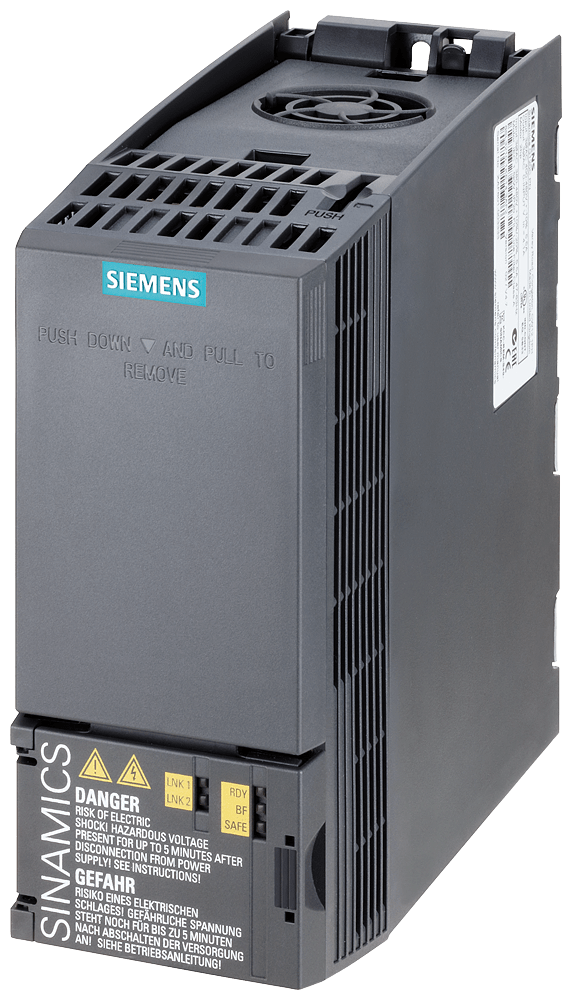

Sinamics g120c

The SINAMICS G120C frequency converter is designed for versatile applications such as conveyor belts, mixers, pumps, fans, and compressors.

Technical details:

• Rated power: 3AC380-480V +10/-20%
• Frequency: 47-63Hz
• Low overload: 1.1kW at 150% 3s, 110% 57s, 100% 240s
• High overload: 0.75kW at 200% 3s, 150% 57s, 100% 240s
• Integrated filter: class A
• External 24V I/O interface: 6DI, 2DO, 1AI,1AO, 1Mot_t Safe Torque Off
• Integrated Fieldbus: USS/ MODBUS RTU
• Protection: IP20/ UL OPEN TYPE
• Size: FSAA 173X73X155(HXWXD)
• Available in seven frame sizes in a power range extending from 0.55 kW up to 132 kW

Customer benefits:

• Certified safety function Safe Torque Off (STO) with integrated options requiring no additional external components.
• Quick and simple commissioning/operation via PC, Basic Operator Panel, Intelligent Operator Panel, or wirelessly using the SINAMICS G120 Smart Access Module.
• Can be networked via standard fieldbus systems (PROFINET, PROFIBUS).
• Equipped with a precise energy-optimized vector control SLVC and features automatic flux reduction for enhanced energy efficiency.
• Adapts to user’s requirements with various options such as local or mobile operator panels, connecting cables, line filters, braking resistors, line reactors, and further accessories.
• Integrates seamlessly within Totally Integrated Automation (TIA) with SIMATIC controllers.
• Replaces the MICROMASTER 420 converter.
