6SL3210-1KE12-3UB2

Description

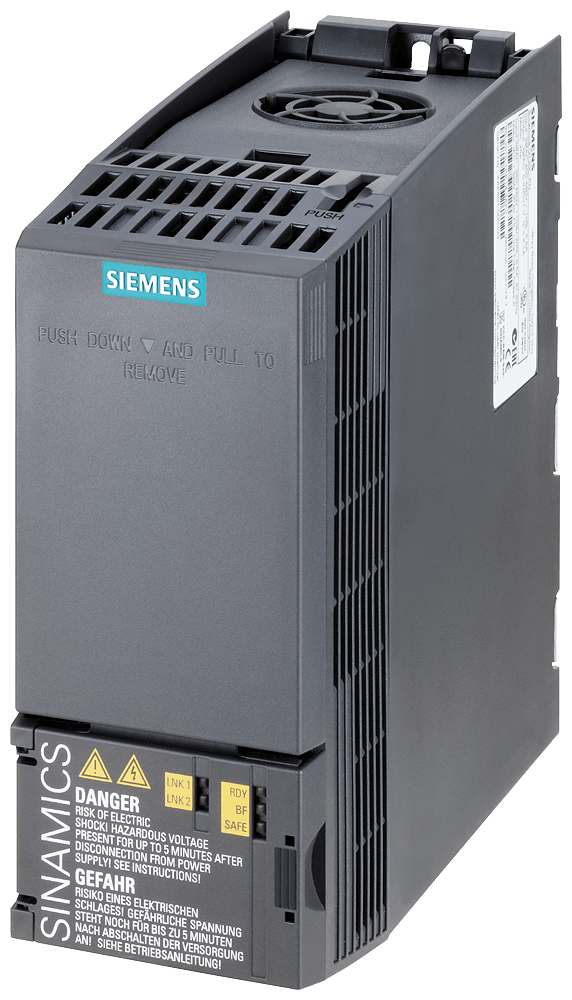

SINAMICS G120C

The SINAMICS G120C is a versatile and user-friendly frequency converter designed for various applications such as conveyor belts, mixers, pumps, fans, and compressors.

Technical details:

• Rated power: 3AC380-480V +10/-20%
• Frequency: 47-63Hz
• Low overload: 0.75kW at 150% 3s, 110% 57s, 100% 240s
• High overload: 0.55kW at 200% 3s, 150% 57s, 100% 240s
• Unfiltered external 24V I/O interface: 6DI, 2DO, 1AI, 1AO, 1Mot_t
• Safe Torque Off integrated: Yes
• Fieldbus: USS/MODBUS RTU
• Protection: IP20/UL OPEN TYPE
• Size: FSAA 173X73X155(HXWXD)
• Power range: 0.55 kW up to 132 kW
• Compatible with fieldbus systems: PROFINET, PROFIBUS
• Cloning parameter sets: Yes
• Energy-optimized vector control: SLVC
• Automatic flux reduction: Yes

Customer benefits:

• Certified safety function: Safe Torque Off (STO)
• No additional external components required for STO via terminal/profilsafe
• Quick and simple commissioning/operation via PC, Basic Operator Panel, Intelligent Operator Panel, or wirelessly with SINAMICS G120 Smart Access Module
• Individually adaptable with various options such as operator panels, connecting cables, line filters, braking resistors, line reactors, and further accessories
• Integral part of Totally Integrated Automation (TIA) and works optimally with SIMATIC controllers
• Replaces MICROMASTER 420 converter
