6SL3210-1KE12-3AF2

Description

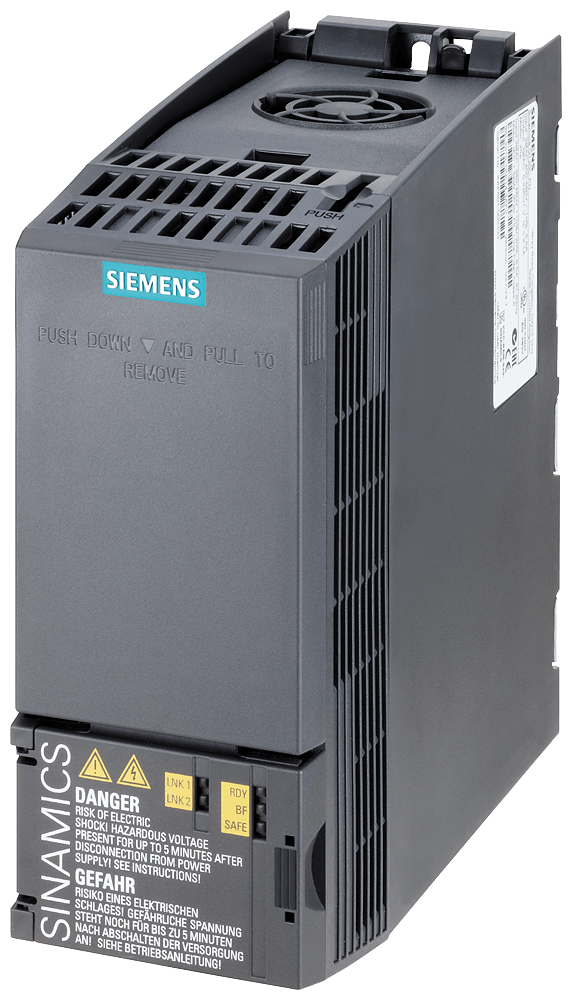

SINAMICS G120C

The SINAMICS G120C frequency converter is designed for versatile applications, including conveyor belts, mixers, pumps, fans, and compressors.

Technical details:

• Rated power: 3AC 380-480V +10/-20%
• Frequency: 47-63Hz
• Low overload: 0,75kW at 150% for 3s, 110% for 57s, 100% for 240s
• High overload: 0,55kW at 200% for 3s, 150% for 57s, 100% for 240s
• Integrated filter: class A
• External 24V I/O interface: 6DI, 2DO, 1AI, 1AO, 1Mot_t
• Safe Torque Off: STO via terminal/ with PROFIsafe integrated
• Integrated Fieldbus: PROFINET-PN
• Protection: IP20/ UL OPEN TYPE
• Size: FSAA 173X73X160(HXWXD)

Customer benefits:

• Versatile and user-friendly design.
• Quick and simple commissioning/operation via PC, Basic Operator Panel, Intelligent Operator Panel, or wirelessly.
• Drives can be networked via standard fieldbus systems (PROFINET, PROFIBUS).
• Equipped with precise energy-optimized vector control SLVC and automatic flux reduction for improved energy efficiency.
• Can be adapted to user requirements with various options such as operator panels, connecting cables, line filters, braking resistors, and line reactors.
• Integral part of Totally Integrated Automation (TIA) working optimally with SIMATIC controllers.
• Replaces the MICROMASTER 420 converter.
