6SL3210-1KE11-8UF2

Description

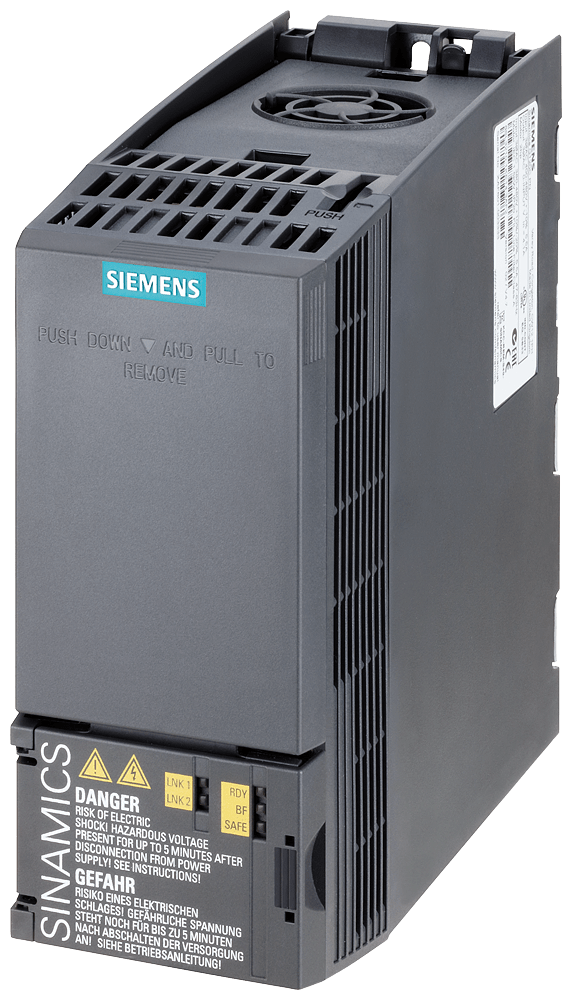

SINAMICS G120C

The SINAMICS G120C is a versatile, user-friendly, and compact frequency converter designed for various applications such as conveyor belts, mixers, pumps, fans, and compressors.

Technical details:

• Rated power: 3AC 380-480V +10/-20%
• Frequency: 47-63Hz
• Low overload: 0.55kW at 150% 3s, 110% 57s, 100% 240s
• High overload: 0.37kW at 200% 3s, 150% 57s, 100% 240s
• Unfiltered external 24V I/O interface: 6DI, 2DO, 1AI, 1AO, 1Mot_t
• Safe Torque Off integrated
• Fieldbus: PROFINET-PN
• Protection: IP20/ UL OPEN TYPE
• Size: FSAA 173X73X160 (HXWXD)
• Power range: 0.55 kW up to 132 kW

Customer benefits:

• Certified safety function Safe Torque Off (STO) with no additional external components required.
• Quick and simple commissioning and operation via PC, Basic Operator Panel, Intelligent Operator Panel, or wirelessly using the SINAMICS G120 Smart Access Module.
• Networkable through standard fieldbus systems (PROFINET, PROFIBUS) with cloning parameter sets for intuitive series commissioning.
• Energy-optimized vector control SLVC and automatic flux reduction for enhanced energy efficiency.
• Individually adaptable with various options, such as local or mobile operator panels, connecting cables, line filters, braking resistors, line reactors, and further accessories.
• Integral part of Totally Integrated Automation (TIA), working optimally with SIMATIC controllers.
• Replaces the MICROMASTER 420 converter.

Disclaimer: Generated by AI.
