6ES7522-1BL01-0AB0

Description

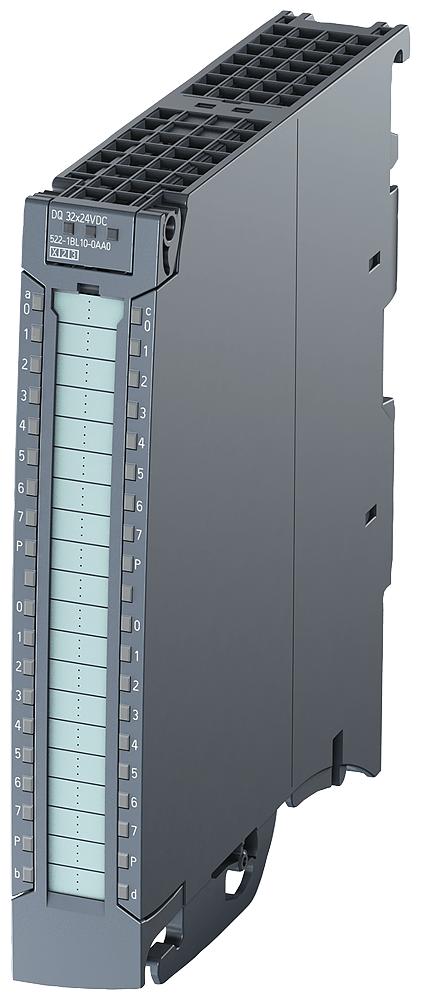

Simatic S7-1500

The SIMATIC S7-1500 is a digital output module designed for precise control of actuators with 32 channels and advanced diagnostic features.

Technical details:

• Digital output module DQ 32x24V DC/0.5A HF
• 32 channels in groups of 8
• 4 A per group
• Single-channel diagnostics
• Substitute value, switching cycle counter for connected actuators
• Supports safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021
• Category 3 / PL d according to EN ISO 13849-1:2015
• Front connector (screw terminals or push-in) to be ordered separately

Customer benefits:

• Modular and scalable I/O system with IP20 for universal use
• Permits shortest bus cycle times and fastest response times, even with large volumes of data
• Particularly easy to install, wire, and commission
• Scalable design allows for precise alignment to on-site requirements
• Wide range of digital and analog input and output modules available for universal applicability
