6ES7516-2GP03-0AB0

Description

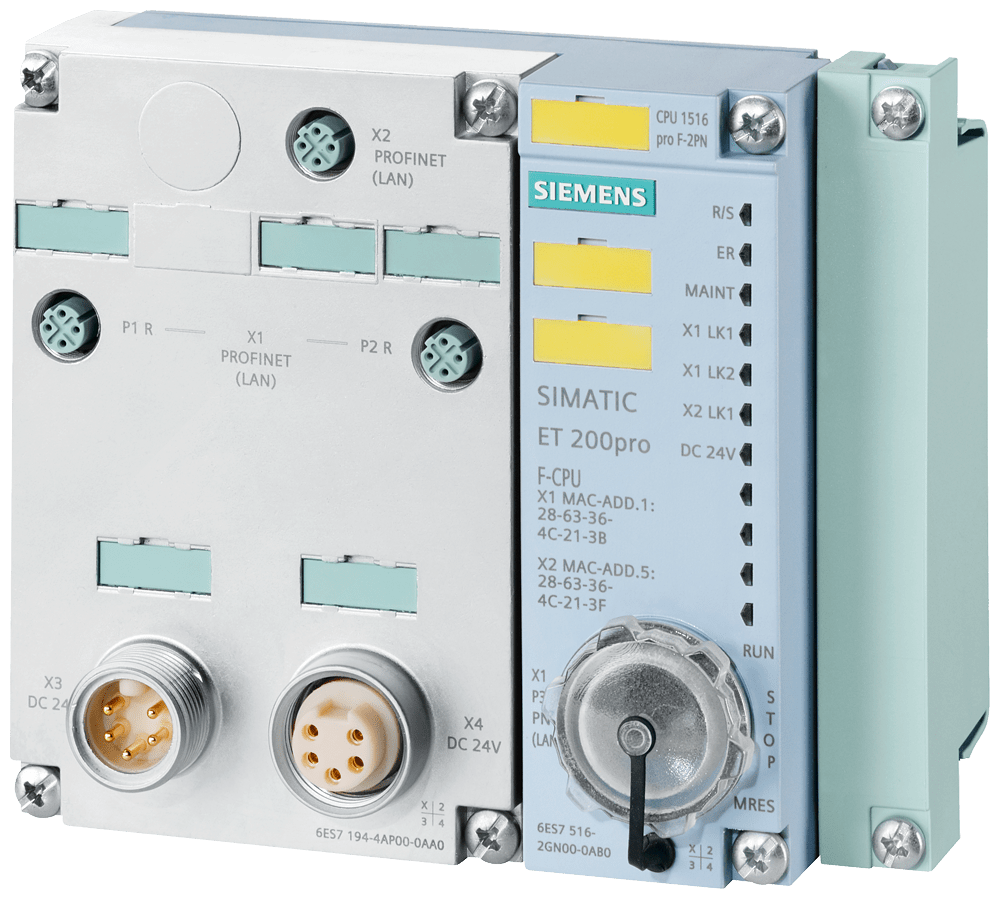

Simatic DP, CPU 1516pro F-2 PN for ET 200pro

Central processing unit with work memory 3 MB for program and 7.5 MB for data.

Technical details:

• • • Work memory: 3 MB for program and 7.5 MB for data
    • 1st interface: PROFINET IRT with 3-port switch
    • 2nd interface: PROFINET RT
    • Bit performance: 6 ns
    • Degree of protection: IP65/67
    • SIMATIC Memory Card required
    • Connection module required

Customer benefits:

• • • Modular, rugged, and versatile I/O system with a comprehensive range of modules
    • Space-saving and multifunctional device that does not require a control cabinet
    • Flexible and quick response to varied automation requirements
    • Minimum downtimes due to extensive and precise diagnostics functions in High Feature modules
    • Hot swapping allows for module replacement without shutting down the plant
    • High-quality and flexible complete solution for high mechanical loads
    • Integrated solutions for motor control with fail-safe variants available
    • Wide range of fail-safe modules for applications up to SIL 3 / PLe
    • Includes IO-Link master and module for connecting RFID component devices via RS 232 / 422 interface
