6ES7513-2PM03-0AB0

Description

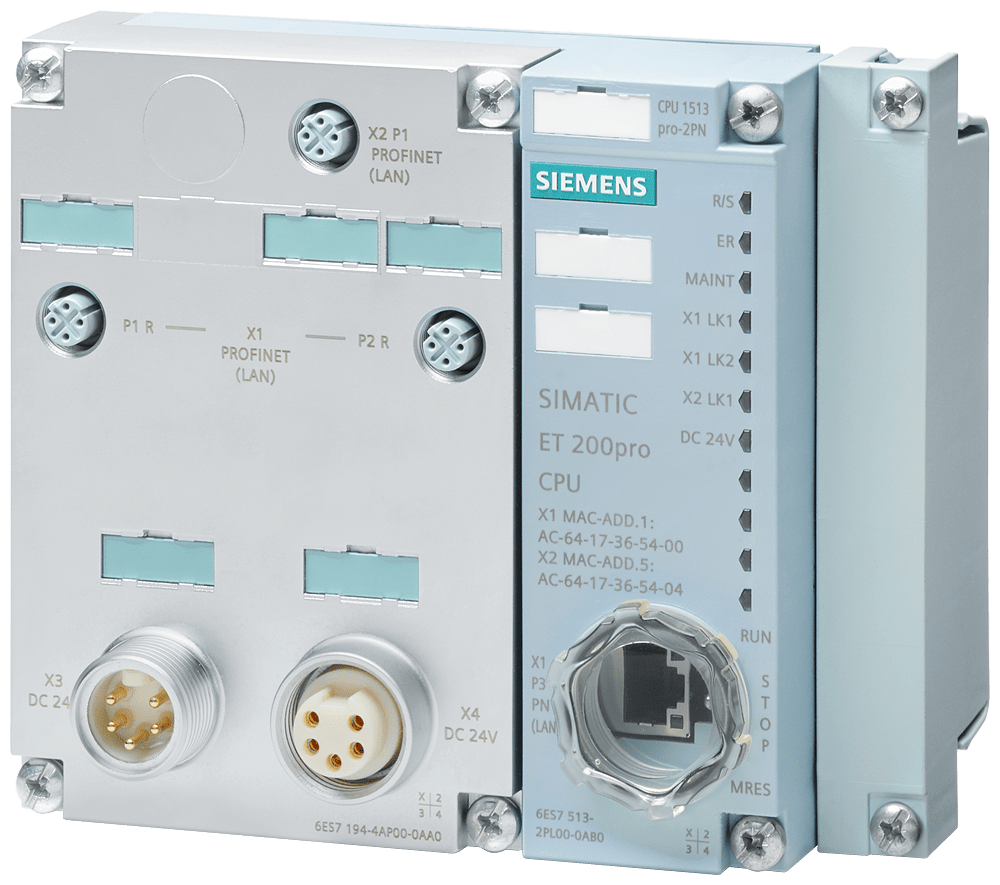

Cpu 1513pro-2 Pn

The SIMATIC DP, CPU 1513pro-2 PN for ET 200pro is a central processing unit designed for flexibility and efficiency in automation systems.

Technical details:

• Work memory: 600 KB for program and 2.5 MB for data
• 1st interface: PROFINET IRT with 3-port switch
• 2nd interface: PROFINET RT
• Bit performance: 6 ns
• Degree of protection: IP65/67
• SIMATIC Memory Card required
• Connection module required

Customer benefits:

• Modular, rugged, and versatile I/O system with IP65/67 protection
• Space-saving and multifunctional device without the need for a control cabinet
• Extensive diagnostics functions in High Feature modules minimize plant downtimes
• Hot swapping capability allows module replacement without plant shutdown
• High-quality and flexible complete solution suitable for high mechanical loads
• Wide range of modules, including fail-safe options for SIL 3 / PLe applications
• Integrated solutions for motor control, including fail-safe variants
• IO-Link master and RFID connection module enhance functionality
