6ES7193-6BP20-0BA0

Description

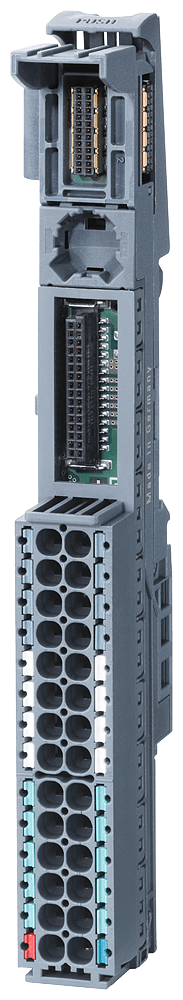

Simatic Et 200Sp, Baseunit Bu15-P16+A10+2B, Bu Type A0

SIMATIC ET 200SP is a modular, scalable, and highly flexible distributed I/O system.

Technical details:

• BU type A0
• Push-in terminals
• 10 AUX terminals, bridged to the left
• WxH: 15 mm x 141 mm
• Expansion with up to 64 I/O modules
• Standard functions (ST), High Feature (HF), High Speed (HS), basic functions (BA)
• Applications up to SIL 3 / PLe
• Integrated motor starters suitable for motors up to 5.5 kW
• Energy Meters for measuring and analyzing energy consumption
• IO-Link master (V1.1.)

Customer benefits:

• Well-suited for installation in small control boxes near the machine
• Free selection of the PROFINET connection technology via the BusAdapter
• Tool-free wiring by means of push-in technology
• Improved accessibility of the wiring due to a new arrangement of the spring releases
• Channel-precise diagnostic functions
• Capability of swapping modules and terminal boxes during operation (hot swapping)
• Scalable, cost-optimized configuration of an ET 200SP station
• Adaptable to any automation task
