6ES7143-6BH00-0BB0

Description

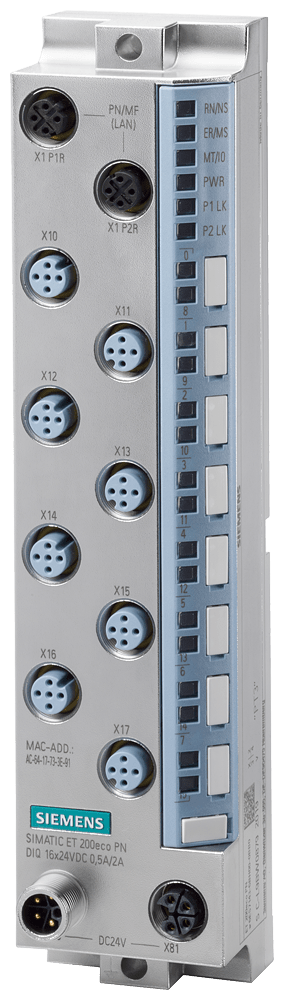

SIMATIC ET 200eco PN

SIMATIC ET 200eco PN is a compact block I/O system with a PROFINET connection with degree of protection IP65/67 and is therefore a space-saving and future-oriented solution that sets new market standards and also requires very little installation effort.

Technical details:

• DIQ 16x 24 V DC/0.5 A/2 A
• M12-L, 8x M12
• double assignment
• input type 3 (IEC 61131)
• sink input (PNP, sinking input)
• input delay 0.05..20 ms
• source output (PNP, switching to P potential)
• substitute value output
• channel diagnostics for: wire break at input, encoder power supply short-circuit, short-circuit at output
• prioritized startup, MSI, MSO, MRP, S2 redundancy
• I&M0…3, multi-fieldbus, PN IO, Ethernet IP, Modbus TCP
• degree of protection IP67 / IP69K

Customer benefits:

• Quick and flexible installation and commissioning in any position.
• Rugged die-cast zinc housing ensures ideal protection in challenging ambient conditions.
• Operational temperature range from -40 °C to +60 °C.
• Maximum resistance to vibration, dust, oil, and humidity.
• Future-oriented and innovative complete solution with integrated 2-port switches.
• M12-L coded power connectors simplify power supply concept and enable longer cable lengths.
• Flexibly configured with digital and analog input and output modules, including IO-Link master and fail-safe module for SIL 3/PLe.
• Outputs of standard modules can be disconnected in a fail-safe manner up to SIL 2.
