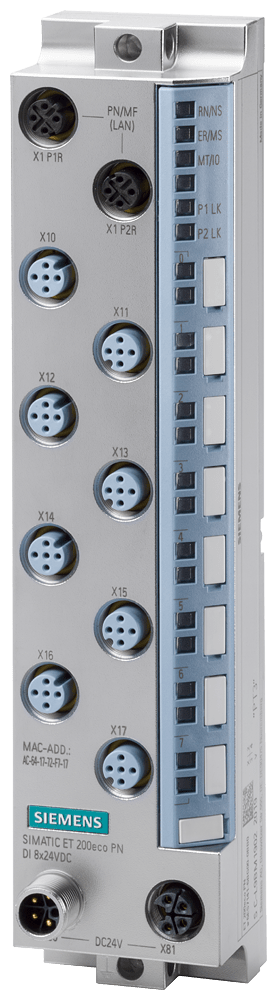

6ES7142-6BR00-0BB0

Description

Simatic et 200eco pn

SIMATIC ET 200eco PN is a compact block I/O system with a PROFINET connection and is therefore a space-saving and future-oriented solution that sets new market standards.

Technical details:

• DQ 8x 24 V DC/2A
• M12-L, 8x M12
• single and double assignment
• source output (PNP, switching to P potential)
• substitute value output
• channel diagnostics for wire break and short-circuit at the output
• shared device with 2 controllers
• 0.25 ms isochronous mode
• prioritized startup
• MSO, MRP, S2 redundancy
• I&M0…3
• multi-fieldbus
• PN IO, Ethernet IP, Modbus TCP
• degree of protection IP67 / IP69K

Customer benefits:

• Quick and flexible installation and commissioning in any position.
• Installation can be performed directly on site on the machine or the assembly line.
• Very rugged die-cast zinc housing ensures ideal protection in extremely challenging ambient conditions.
• Enables use at temperatures ranging from -40 °C to +60 °C.
• Maximum resistance to vibration, dust, oil, and humidity.
• Future-oriented and innovative complete solution with flexible configuration.
• M12-L coded power connectors simplify the power supply concept.
• Higher current-carrying capacity allows for longer cable lengths in the field without additional power supply cables.
• Products encompass digital and analog input and output modules for various measurements.
• Includes IO-Link master and fail-safe module for connecting sensors and actuators up to SIL 3/PLe.
• Outputs of standard modules can be practically disconnected in a fail-safe manner up to SIL 2.
