6ES7141-6BH00-0BB0

Description

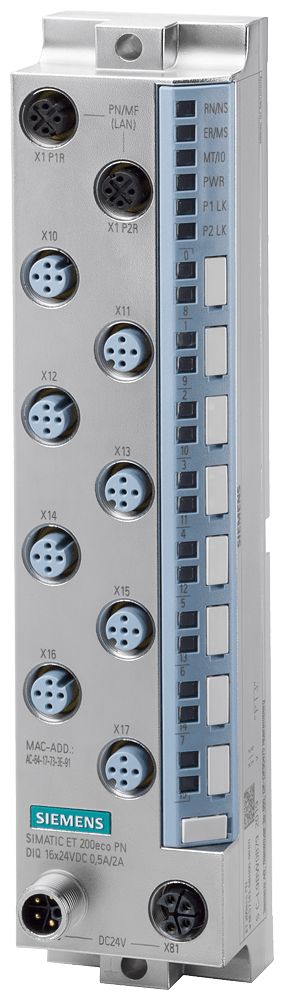

Simatic Et 200eco Pn

SIMATIC ET 200eco PN is a compact block I/O system with a PROFINET connection that offers flexibility and ruggedness for various industrial applications.

Technical details:

• DI 16x 24 V DC
• M12-L
• 8x M12
• Double assignment
• Input type 3 (IEC 61131)
• Sink input (PNP, sinking input)
• Input delay 0.05..20 ms
• Channel diagnostics for: wire break at input, encoder power supply short-circuit
• 0.25 ms isochronous mode
• Prioritized startup
• MSI
• MRP
• S2 redundancy
• I&M0…3
• Multi-fieldbus: PN IO, Ethernet IP, Modbus TCP
• Degree of protection IP67 / IP69K

Customer benefits:

• Space-saving and future-oriented solution with minimal installation effort.
• Quick and flexible installation and commissioning in any position.
• Installation can be performed directly on site on the machine or assembly line.
• Rugged die-cast zinc housing provides ideal protection in challenging ambient conditions.
• Operable at temperatures ranging from -40 °C to +60 °C.
• Maximum resistance to vibration, dust, oil, and humidity.
• Future-oriented and innovative complete solution with integrated 2-port switches.
• M12-L coded power connectors simplify the power supply concept and enable higher current-carrying capacity.
• Disconnection of outputs in a fail-safe manner up to SIL 2.
