6EP1961-2BA51

Description

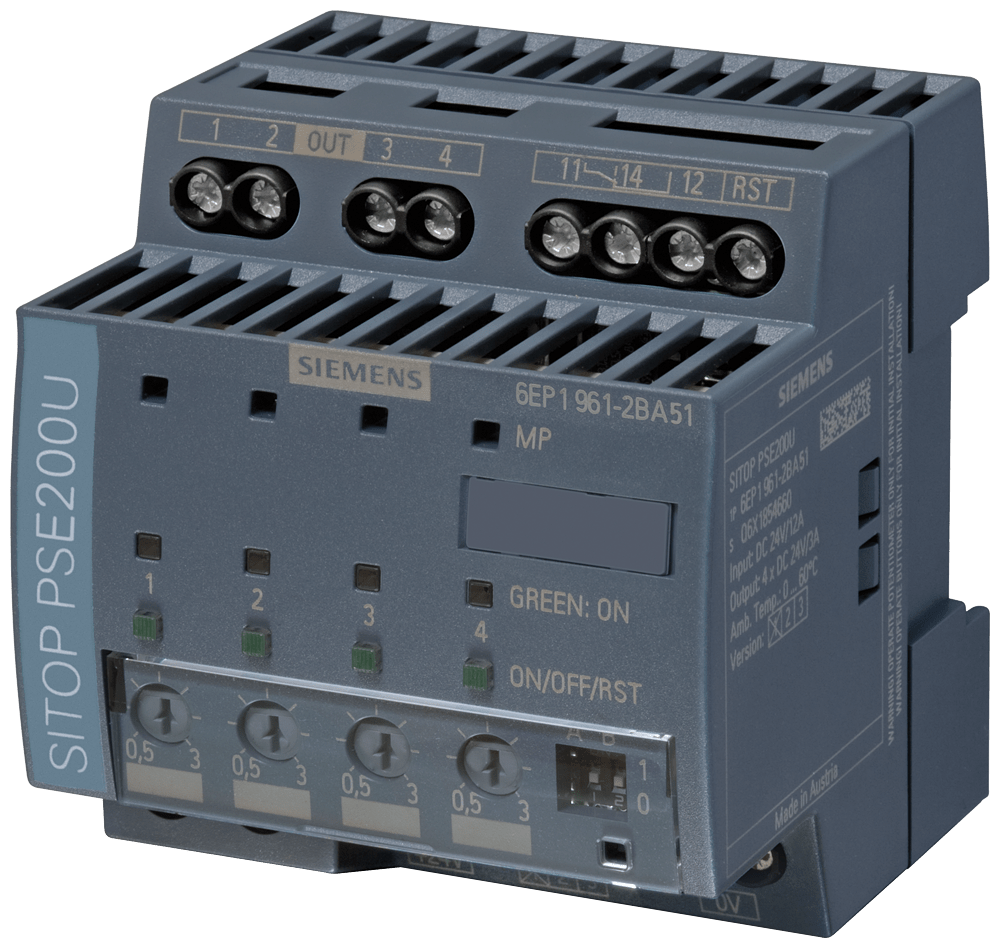

SITOP PSE200U

The SITOP PSE200U selectivity module is designed to enhance 24 V power supplies by distributing and monitoring load current across several feeders.

Technical details:

• 3 A NEC CLASS 2 selectivity module
• 4-channel input: 24 V DC
• Output: 24 V/4x 3 A
• NEC class 2 threshold value adjustable 0.5-3 A
• Common signaling contact

Customer benefits:

• Overloads and short-circuits in one or more feeders are detected reliably.
• Permits brief current peaks due to high inrush currents while disconnecting feeders during extended overloads.
• Ensures operation on high-resistance lines and during creeping short-circuits.
• Intact feeders continue to receive 24 V on an interruption- and reaction-free basis, minimizing plant downtimes.
• Faulty feeders are signaled by LEDs and via group signaling contact.
• Outputs comply with NEC Class 2 requirements.
• Reliable and efficient power supplies for any plant, regardless of industry or requirement.
