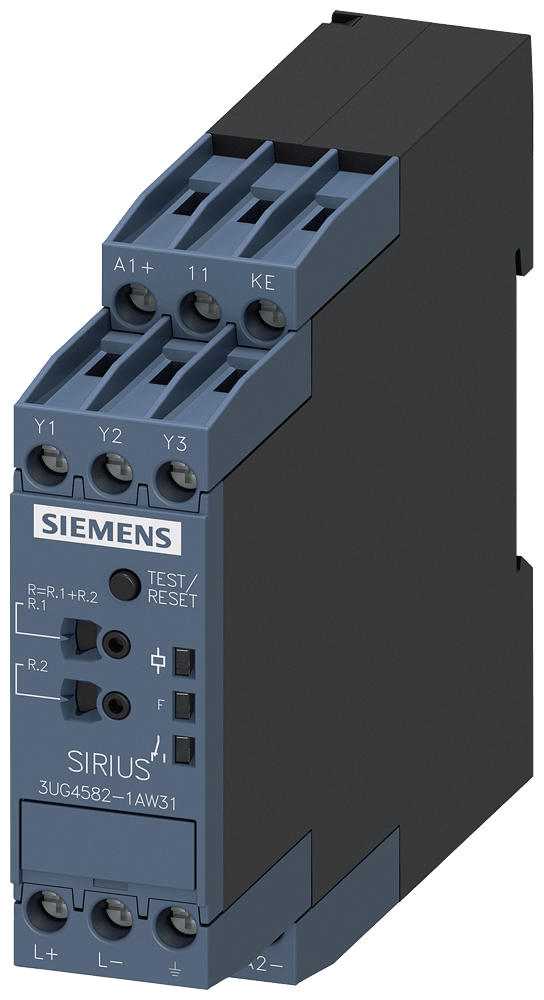

3UG4582-1AW31
480,00 €
In Stock
Analogically adjustable insulation monitoring relay, up to 250 V AC, 15-400 H…
In Stock
Description
- Measuring range: 1-100 kohm
- Supply voltage: 24-240 V AC/DC
- Voltage: up to 250 V AC, 300 V DC
- Frequency: 15-400 Hz
- Dimensions: 22.5 mm
- Contact type: 1 changeover contact
- Connection type: screw terminal
- Designed for systems with strict requirements on availability in various industries, including chemical, automobile, shipbuilding, and railway sectors.
- Worldwide use due to wide voltage supply range and international certificates.
- New predictive measurement principle enables very fast response times.
- Permanent self-monitoring and manual test option ensure high reliability.
- Clear error messages and connectable fault memory facilitate reliable system diagnostics.
- Available for both AC and DC voltage networks, offering flexibility in application.
Insulation monitoring relay
The insulation monitoring relay is designed for monitoring ungrounded (IT) networks, ensuring reliability and availability in critical applications.
Technical details:
Customer benefits:
Disclaimer: Generated by AI.
Additional information
| Dimensions | 10 × 2,25 × 7,8 cm |
|---|---|
| PriceGroup | 41H |
| Product page (external) | Open link ↗ |
