3UF7011-1AU00-0

Description

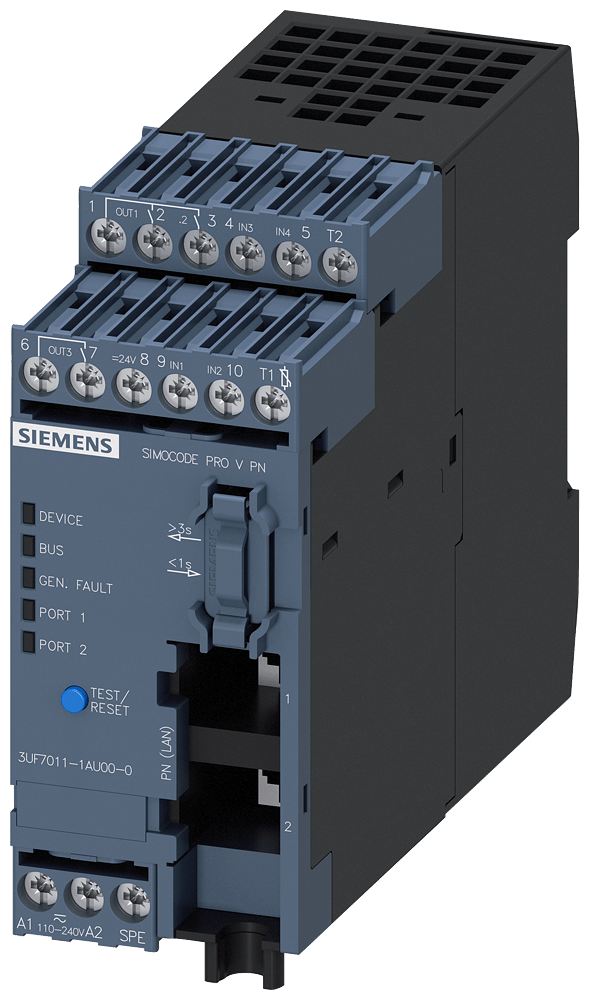

Simocode pro V PN

The basic device SIMOCODE pro V PN is an intelligent motor management system designed for extensive protection, monitoring, safety, and control functions for asynchronous motors.

Technical details:

• Device: SIMOCODE pro V PN
• Type: Basic device
• Ethernet/PROFINET IO
• PN system redundancy
• OPC UA server
• Web server
• Transfer rate: 100 Mbps
• 2 x bus connection via RJ45
• 4 I/3 O freely configurable
• Us: 110…240 V AC/DC
• Input for thermistor connection
• Monostable relay outputs
• Expandable by expansion modules
• Worldwide approvals (e.g. IEC and UL/CSA)
• Applications in hazardous areas (ATEX or IEC Ex)
• Support for IE3/IE4 motors
• Available with 24 V DC or 110-240 V AC/DC control supply voltage
• Operation requires at least one current/voltage measuring module
• Matching 3UF793 connecting cable

Customer benefits:

• Extensive protection, monitoring, safety, and control functions for asynchronous motors.
• Detailed operating, service, and diagnostics data for process control systems.
• Implementation of a large number of control functions, independently of the automation system.
• Extensive range of inputs/outputs, voltage and power recording, fail-safe disconnection of motors.
• Precise ground-fault detection via 3UL23 residual-current transformers.
• Analog value monitoring and temperature measurement capabilities.
• Variety of communication interfaces such as PROFIBUS, PROFINET, OPC UA, Modbus RTU, or EtherNet/IP.
• Simplified integration into the SIMATIC PCS 7 process control system via SIMOCODE pro block library.
• Optional operator panels with or without a display and various expansion modules available separately.
