3SE5242-0PC05-1CA0

Description

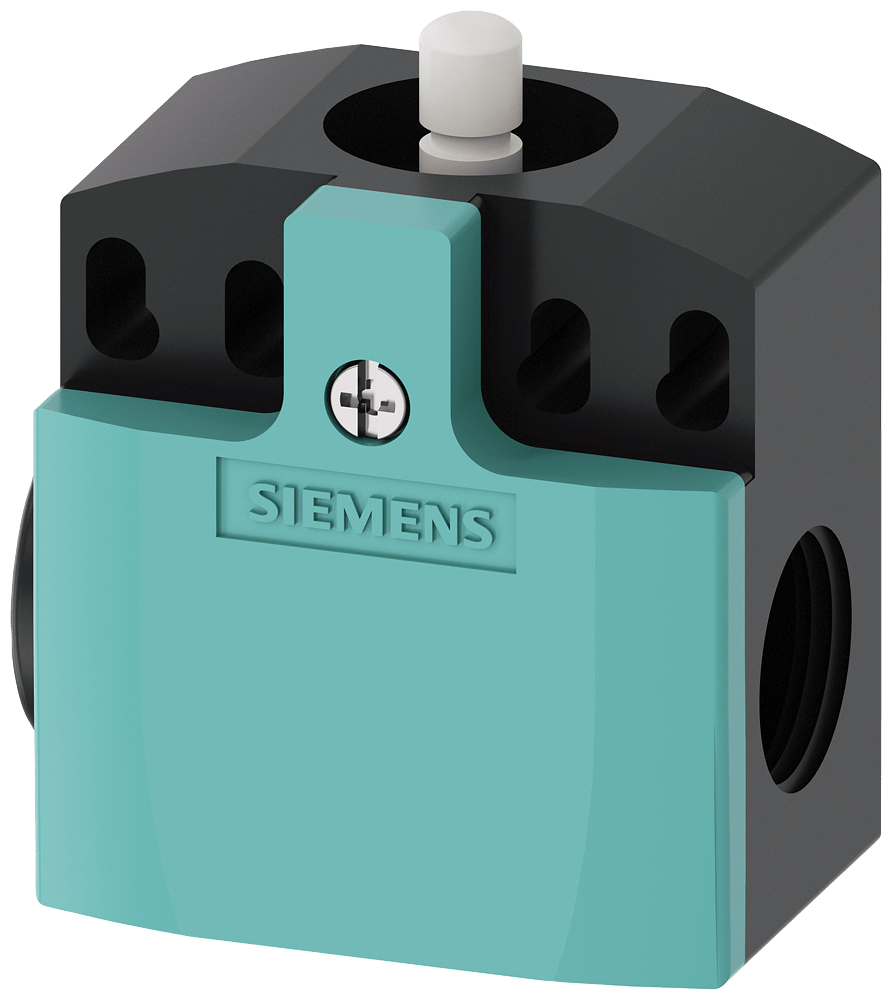

Position switch with increased corrosion protection

The SIRIUS 3SE5 position switch is designed for position sensing of machine parts and monitoring of protection equipment, featuring a modular design for various applications.

Technical details:

• Plastic enclosure wide, according to EN 50047
• Device connection 2 x (M20 x 1.5)
• 2 NO/1 NC slow-action contacts
• Teflon plunger
• Operating points and mounting in accordance with EN 50047 and EN 50041
• Worldwide approval (IEC, UL)
• Highest safety requirements specified by PL e or SIL 3 can be met
• Integrated ASIsafe electronics requires a low current input
• Various enclosure sizes available in plastic or metal, or compact design
• Some versions optionally available with an LED status display and M12 plug
• 3SF1 series with direct connection to the AS-Interface bus system

Customer benefits:

• Modular design permits a host of variants with a small number of bearing types
• Wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry
• LEDs indicate the current state of the device
• Quick-connect technology considerably reduces time required for connection
• Actuator heads, plug-in connectors, and other mounting/connection accessories available depending on design
• Safety is a SIRIUS business
