3SE5234-0HD03-1AC4

Description

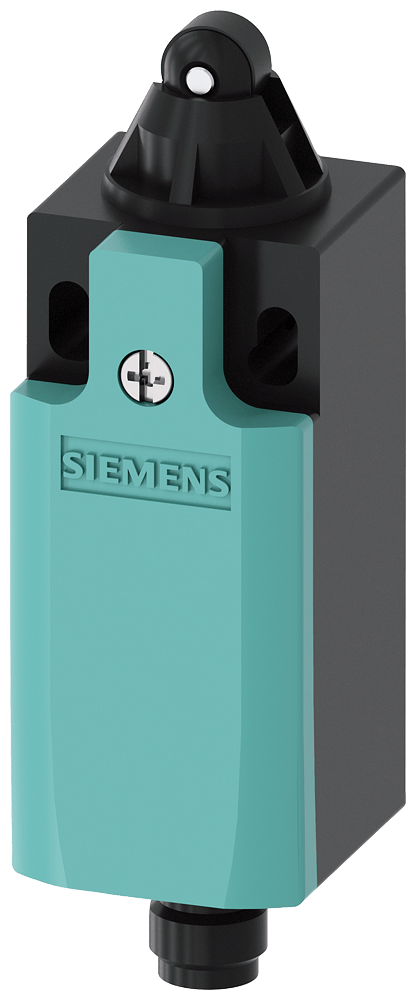

Position switch

Plastic enclosure according to DIN EN 50047, designed for position sensing of machine parts and position monitoring of protection equipment.

Technical details:

• Plastic enclosure according to DIN EN 50047
• 31 mm 1 NO/1 NC quick action contacts integrated (not replaceable)
• M12 connector, 4-pole Pin assignment: Pin1=21, Pin2=22 Pin3=13, Pin4=14
• For max. 250 V and 4 A
• Roller plunger with plastic roller 10 mm
• Mechanical position switches SIRIUS 3SE5
• Modular design permitting a host of variants with a small number of bearing types
• Wide variety of plug-in connectors and rollers
• LEDs indicate the current state of the device
• Quick-connect technology to reduce connection time
• Operating points and mounting in accordance with EN 50047 and EN 50041
• Worldwide approval (IEC, UL)
• Meets highest safety requirements specified by PL e or SIL 3 with corresponding switch configuration
• Integrated ASIsafe electronics requires a low current input
• Various enclosure sizes, with different contacts, available in plastic or metal, or compact design
• Some versions optionally available with an LED status display and M12 plug
• 3SF1 series with direct connection to the AS-Interface bus system
• Depending on design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available

Customer benefits:

• Wide adaptability to meet almost all everyday requirements in industry
• Significantly reduced connection time due to quick-connect technology
• Compliance with international safety standards ensures high reliability
• Flexible design options with various enclosure sizes and contacts
