3SE5232-0LE10

Description

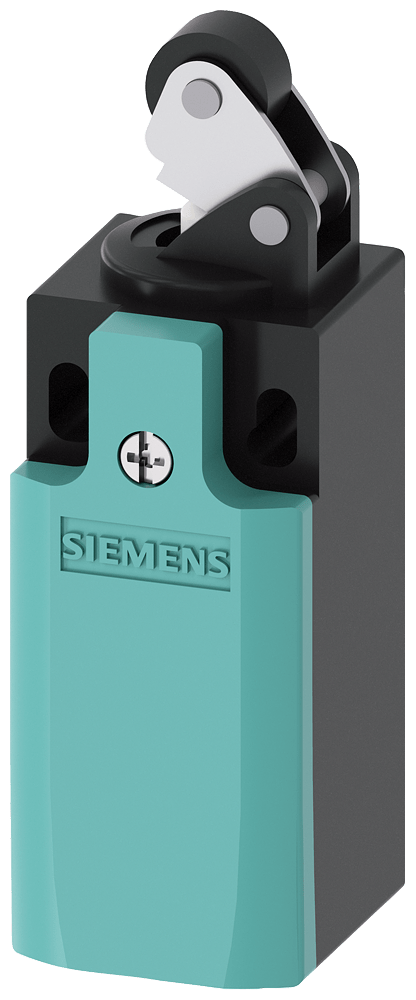

Position switch

Plastic enclosure according to EN 50047 used for position sensing of machine parts and position monitoring of protection equipment.

Technical details:

• Plastic enclosure according to EN 50047
• Device connection 1 x (M20 x 1.5)
• 1 NO/2 NC quick action contacts
• Roller lever with plastic roller 13 mm
• Modular design permits a host of variants
• Wide variety of plug-in connectors and rollers
• LEDs indicate the current state of the device
• Quick-connect technology reduces connection time
• Operating points and mounting in accordance with EN 50047 and EN 50041
• Worldwide approval (IEC, UL)
• Meets highest safety requirements (PL e or SIL 3)
• Integrated ASIsafe electronics requires low current input
• Various enclosure sizes, with different contacts available in plastic or metal
• Some versions with LED status display and M12 plug
• 3SF1 series with direct connection to AS-Interface bus system
• Actuator heads and plug-in connectors available
• Other mounting/connection accessories available

Customer benefits:

• Time required for connection can be considerably reduced
• Wide range of variants meets almost all everyday requirements in industry
• Safety is a SIRIUS business
