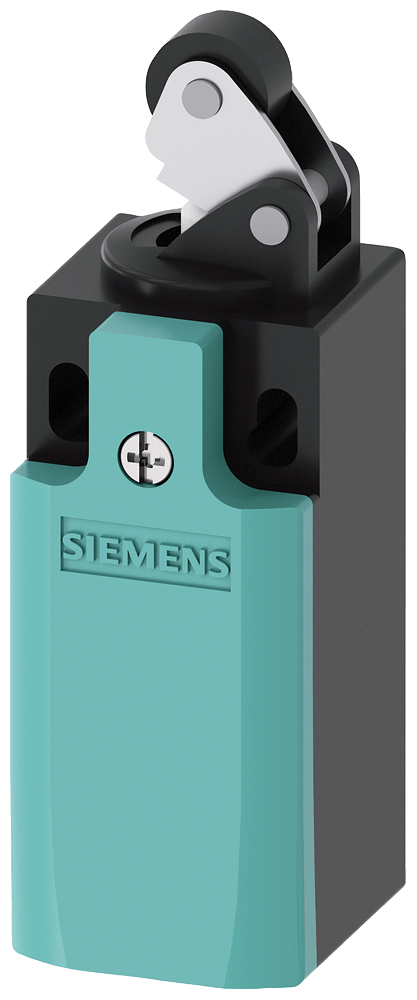

3SE5232-0CE12-1CA0

Description

Position switch with increased corrosion protection

Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.

Technical details:

• Plastic enclosure according to EN 50047
• 31 mm Device connection 1 x (M20 x 1.5)
• 1 NO/1 NC quick action contacts (replaceable)
• Roller lever made of stainless steel with plastic roller 13 mm
• Operating points and mounting in accordance with EN 50047 and EN 50041
• Worldwide approval (IEC, UL)
• Integrated ASIsafe electronics requires a low current input
• Various enclosure sizes, with different contacts, available in plastic or metal, or compact design
• Some versions optionally available with an LED status display and M12 plug
• 3SF1 series with direct connection to the AS-Interface bus system

Customer benefits:

• Modular design permits a host of variants with a small number of bearing types
• Wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry
• LEDs indicate the current state of the device
• Quick-connect technology reduces the time required for connection
• Can meet the highest safety requirements specified by PL e or SIL 3 with the corresponding switch configuration
• Depending on the design, various actuator heads and mounting/connection accessories are available
