3RW4037-1BB04

Description

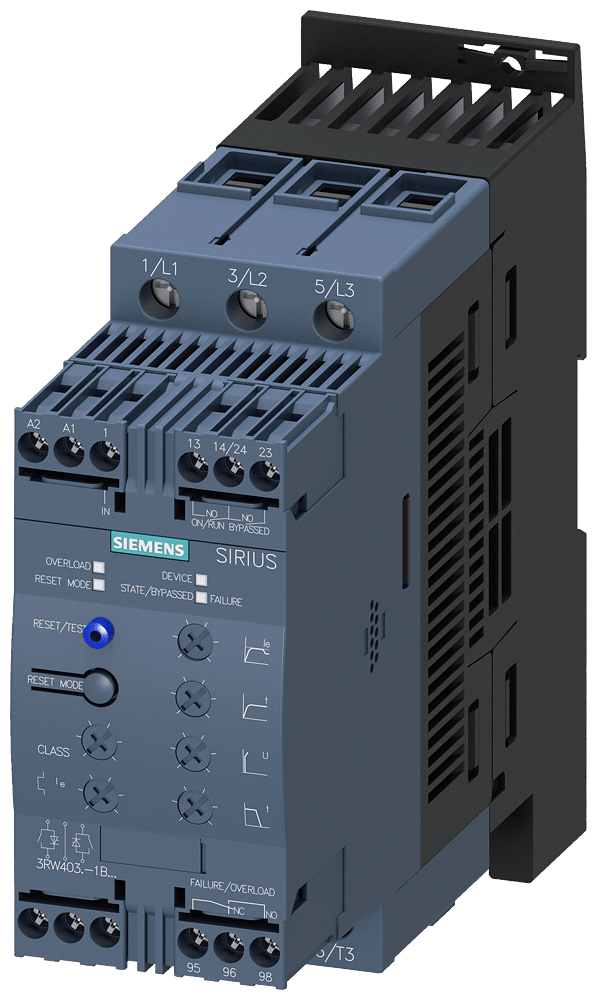

SIRIUS soft starter S2 63 A

The SIRIUS soft starter S2 is designed for the soft starting and ramp-down of three-phase asynchronous motors.

Technical details:

• 30 kW/400 V
• 40 °C
• 200-480 V AC
• 24 V AC/DC
• Screw terminals
• Worldwide approvals (e.g. IEC and UL/CSA)
• Available for supply systems up to 690 V
• Control supply voltage options including 24 V

Customer benefits:

• Soft starting and reduction of current peaks
• Prevention of supply voltage fluctuations during startup
• Reduction of load on the power supply network
• Reduction of mechanical load in the drive
• Considerable saving of space and wiring compared to star-delta starters and frequency converters
• Maintenance-free switching and extremely easy handling
• Integrated bypass for compact construction and low heat dissipation
• Intelligent monitoring functions protect against overheating and motor overload
• Integrated remote reset for quick fault clearing
• Optional fan for even more compact design in the control cabinet
• Simple, efficient, and always up to date with the SIRIUS modular system
