3RW3017-1BB04

Description

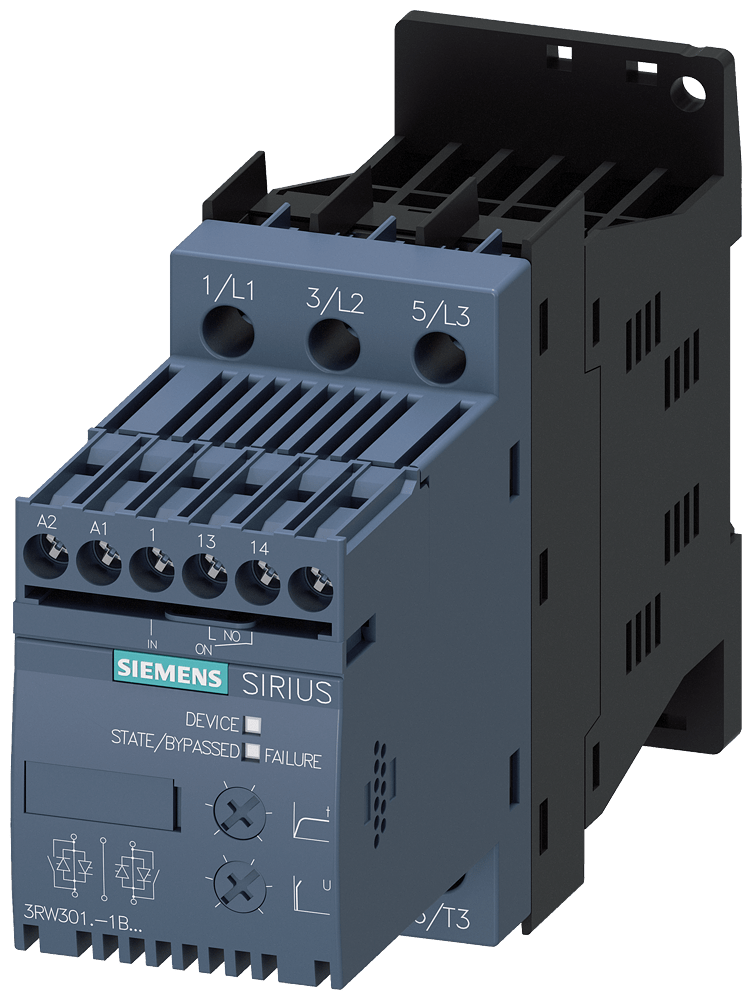

Sirius soft starter S00 12.5 A, 5.5 kW/400 V

The SIRIUS soft starter is designed for the soft starting of three-phase asynchronous motors, enhancing efficiency and reducing mechanical load during startup.

Technical details:

• Current: 12.5 A
• Power: 5.5 kW/400 V
• Temperature: 40 °C
• Voltage: 200-480 V AC, 24 V AC/DC
• Type: Screw terminals
• Soft starter model: SIRIUS 3RW30
• Approvals: Worldwide approvals (e.g. IEC and UL/CSA)

Customer benefits:

• Soft starting reduces current peaks and prevents supply voltage fluctuations during startup.
• Reduces load on the power supply network and mechanical load in the drive.
• Considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters.
• Maintenance-free switching and extremely easy handling.
• Integrated bypass allows compact construction and low heat dissipation in the control cabinet.
• Available for supply systems up to 690 V in a wide performance range with different control supply voltages.
• Some models offer thermistor motor protection.
• Optional link module allows attachment to circuit breakers.
• Part of a simple, efficient, and always up-to-date SIRIUS modular system.
