3RV2411-1EA10

Description

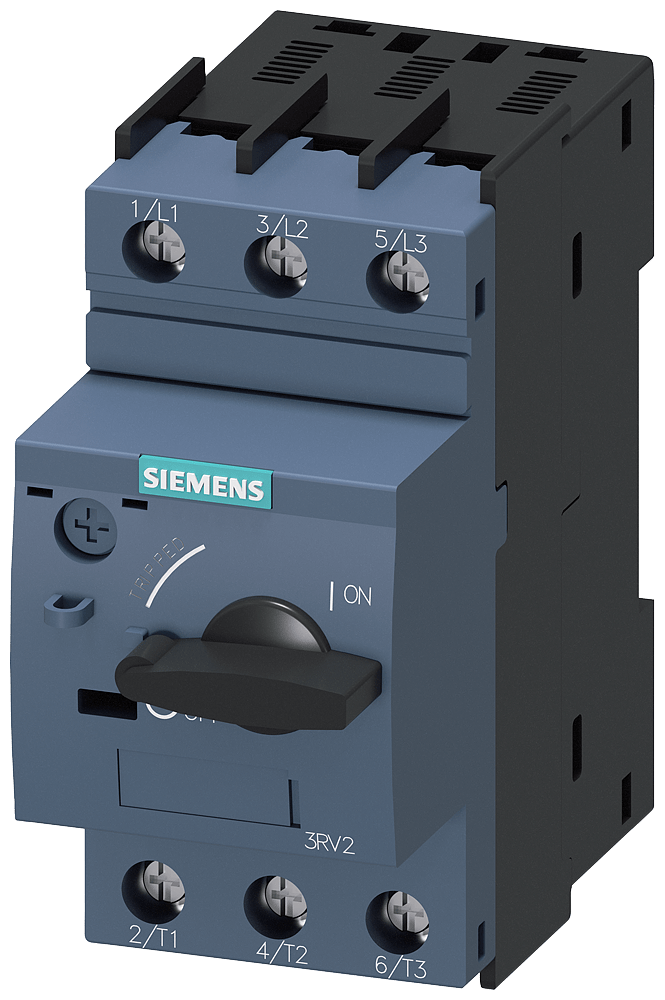

Circuit breaker size S00 for transformer protection

For reliable protection of transformers against short-circuit and overload.

Technical details:

• A-release 2.8…4 A
• N-release 82 A
• Screw terminal
• Standard switching capacity
• Circuit breaker SIRIUS 3RV2
• Worldwide approvals (e.g. IEC and UL/CSA)
• Applications in hazardous areas (ATEX or IEC Ex)
• Available with screw or spring-type terminals
• Optional integral auxiliary switch
• Comprehensive range of accessories standardized for all sizes
• Uses different energy infeed options, such as the associated SIRIUS 3RV29 infeed system
• Replaces the well-proven 3RV1 series

Customer benefits:

• Optimized for use in load feeders and for IE3/IE4 motors
• Low heat loss
• Fast, maintenance-free and vibration-proof connection
• Simple, efficient and always up to date with the SIRIUS modular system
