3RV2041-4JA15

Description

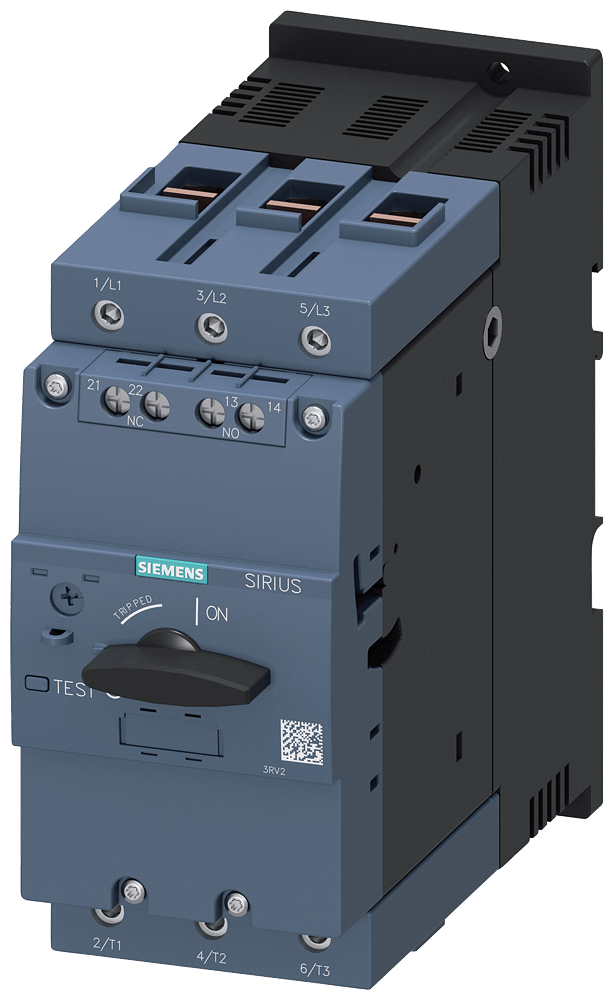

Circuit breaker size S3 for motor protection

The SIRIUS 3RV2 circuit breaker is designed for reliable shutdown in case of a short-circuit and for protecting loads and systems against overload.

Technical details:

• CLASS 10 A-release 45…63 A
• N-release 819 A
• Screw terminal
• Standard switching capacity with transverse auxiliary switches 1 NO+1 NC
• Worldwide approvals (e.g. IEC and UL/CSA)
• Applications in hazardous areas (ATEX or IEC Ex)
• Device versions available for motor protection (also with overload relay function)
• Available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection
• Comprehensive range of accessories standardized for all sizes
• Replaces the well-proven 3RV1 series

Customer benefits:

• Optimized for use in load feeders and IE3/IE4 motors
• Efficient design with low heat loss
• Options for main and EMERGENCY OFF switches
• Diverse energy infeed options reduce main circuit wiring
• Simple, efficient, and always up to date with the SIRIUS modular system
