3RV2021-1FA10
99,40 €
In Stock

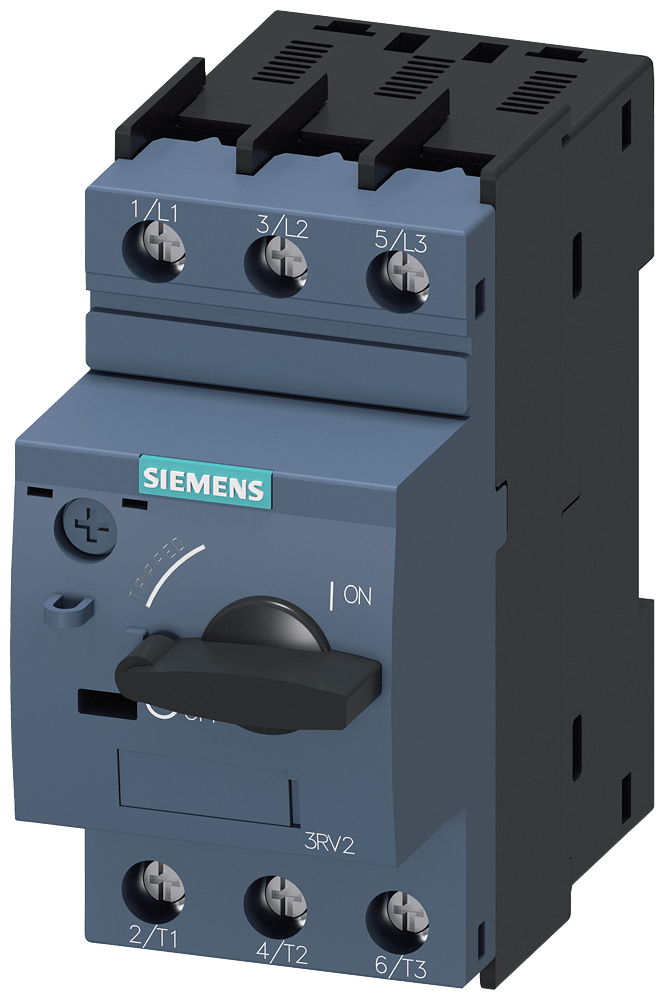

Circuit breaker, S0, motor protection, Class 10, A-release 3.5-5 A, short-cir…
In Stock
Description
- CLASS 10 A-release 3.5…5 A N release 65 A
- screw terminal
- Standard switching capacity
- Circuit breaker SIRIUS 3RV2
- optimized for use in load feeders and IE3/IE4 motors
- worldwide approvals (e.g. IEC and UL/CSA)
- applications in hazardous areas (ATEX or IEC Ex)
- available for motor protection with overload relay function
- plant protection
- short-circuit protection of starter combinations
- transformer protection
- as main and EMERGENCY OFF switches
- use in IT networks
- with screw or spring-type terminals
- optional integral auxiliary switch
- comprehensive range of accessories standardized for all sizes
- different energy infeed options available
- replaces the well-proven 3RV1 series
- low heat loss
- compact and climate-proof design
- fast, maintenance-free and vibration-proof connection
- considerably reduces main circuit wiring
- simple, efficient and always up to date with SIRIUS modular system
Circuit breaker size S0
Circuit breaker size S0 is designed for motor protection and reliable shutdown in case of short circuits.
Technical details:
Customer benefits:
Disclaimer: Generated by AI.
Additional information
| Dimensions | 9,7 × 4,5 × 9,7 cm |
|---|---|
| PriceGroup | 41E |
