3RV2011-0GA10

Description

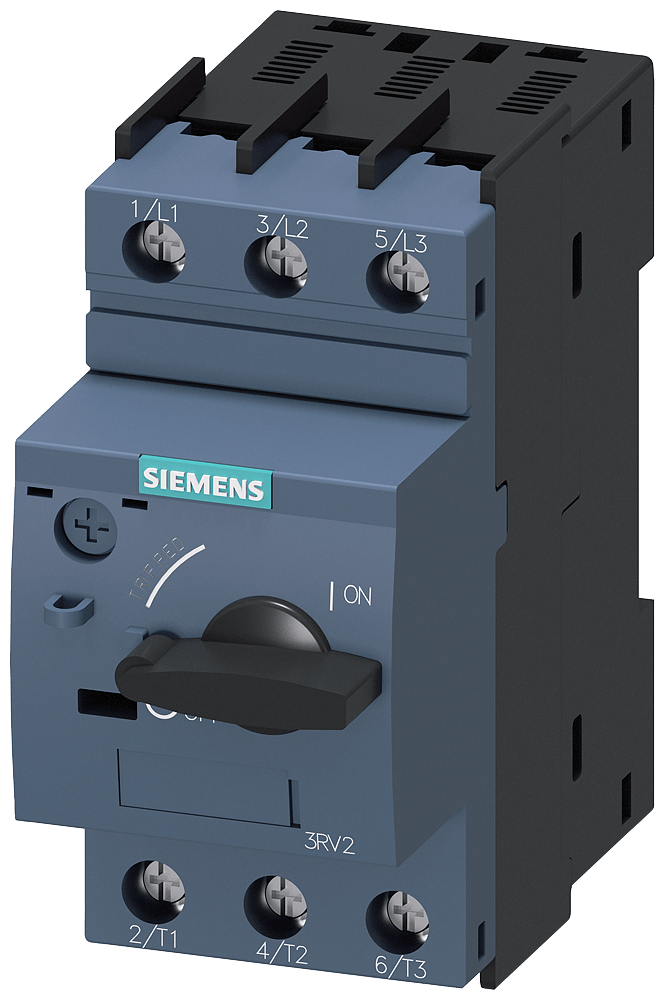

Circuit breaker size S00 for motor protection

The SIRIUS 3RV2 circuit breaker is designed for reliable shutdown in the event of a short-circuit and for protecting loads and systems against overload.

Technical details:

• CLASS 10 A-release 0.45…0.63 A N-release 8.2 A
• Standard switching capacity
• Optimized for use in load feeders, including IE3/IE4 motors
• Worldwide approvals (e.g. IEC and UL/CSA)
• Applications in hazardous areas (ATEX or IEC Ex)
• Device versions available for motor protection, plant protection, short-circuit protection, transformer protection, main and EMERGENCY OFF switches, and use in IT networks
• Screw or spring-type terminals for fast, maintenance-free, and vibration-proof connection
• Optional integral auxiliary switch
• Comprehensive range of accessories standardized for all sizes
• Compatible with SIRIUS 3RV29 infeed system
• Replaces the well-proven 3RV1 series
• Part of the SIRIUS modular system

Customer benefits:

• Reliably protects against overload and allows safe isolation from the network
• Low heat loss for efficient operation
• Simple and efficient design, always up to date
