3RV2011-0EA10

Description

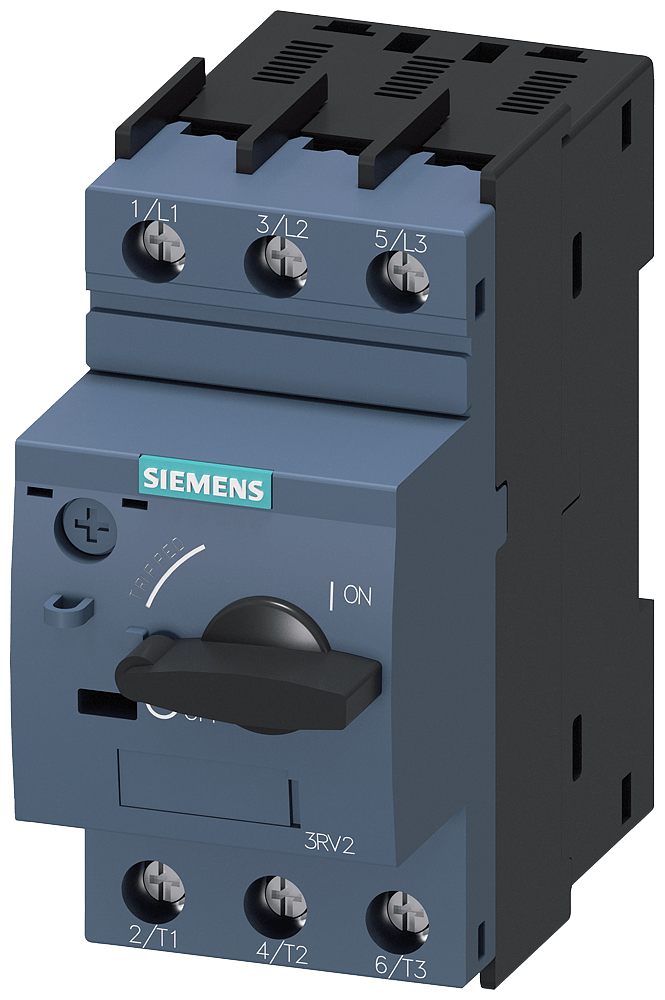

Circuit breaker size S00

Circuit breaker size S00 is designed for motor protection, providing reliable shutdown in case of short-circuits and protecting loads from overload.

Technical details:

• CLASS 10 A-release 0.28…0.4 A
• N-release 5.2 A
• Screw terminal
• Standard switching capacity
• Circuit breaker SIRIUS 3RV2
• Optimized for use in load feeders and for IE3/IE4 motors
• Worldwide approvals (e.g. IEC and UL/CSA)
• Applications in hazardous areas (ATEX or IEC Ex)
• Device versions available for motor protection, plant protection, short-circuit protection, transformer protection, and EMERGENCY OFF switches
• Screw or spring-type terminals for fast, maintenance-free, and vibration-proof connection
• Optional integral auxiliary switch
• Comprehensive range of accessories standardized for all sizes
• Different energy infeed options available, such as SIRIUS 3RV29 infeed system
• Replaces the well-proven 3RV1 series

Customer benefits:

• Reliable shutdown in case of short-circuits
• Protection against overloads
• Low heat loss
• Climate-proof design
• Simple and efficient installation
• Always up to date with the SIRIUS modular system
