3RV2011-0BA10

Description

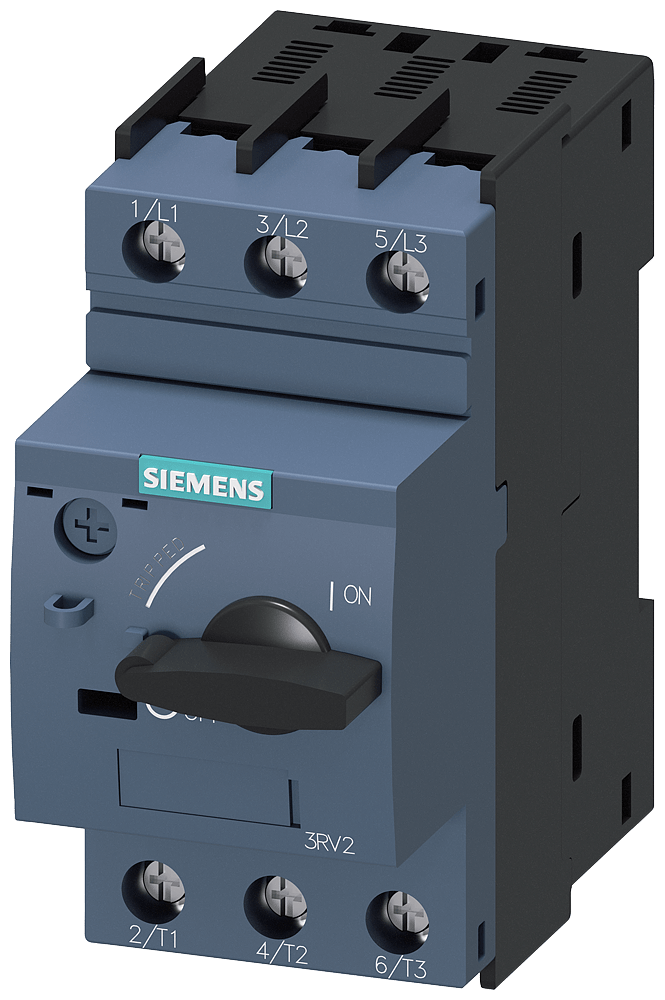

Circuit breaker size S00

For motor protection with reliable shutdown in the event of a short-circuit and overload protection.

Technical details:

• CLASS 10 A-release 0.14…0.2 A
• N-release 2.6 A
• Screw terminal
• Standard switching capacity
• Circuit breaker SIRIUS 3RV2
• Optimized for use in load feeders and IE3/IE4 motors
• Worldwide approvals (e.g. IEC and UL/CSA)
• Applications in hazardous areas (ATEX or IEC Ex)
• Device versions for motor protection, plant protection, short-circuit protection, transformer protection, main and EMERGENCY OFF switches, IT networks
• Screw or spring-type terminals for fast, maintenance-free and vibration-proof connection
• Optional integral auxiliary switch
• Standardized comprehensive range of accessories (auxiliary switches, auxiliary releases, signaling switches)
• Various energy infeed options (associated SIRIUS 3RV29 infeed system)
• Replaces the well-proven 3RV1 series

Customer benefits:

• Reliable protection against short-circuits and overloads
• Low heat loss
• Compact and climate-proof design
• Simple and efficient modular system
• Fast connection with maintenance-free operation
• Always up to date with comprehensive accessories
