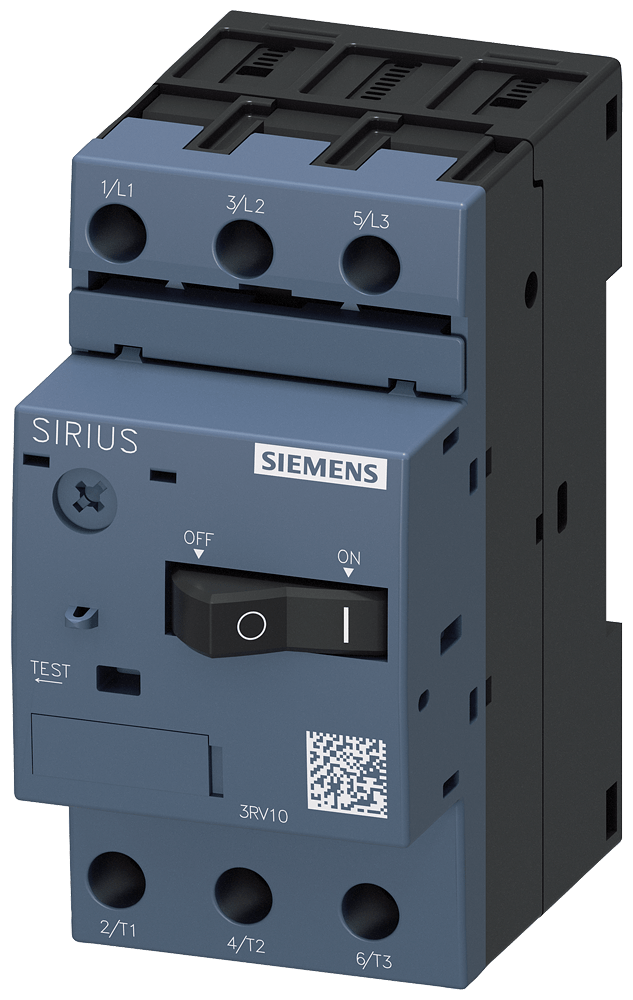

3RV1011-0BA10

Description

Circuit breaker size S00 for motor protection

Designed for reliable shutdown during short circuits and protecting loads and systems against overload.

Technical details:

• CLASS 10 A-release 0.14…0.2 A
• N-release 2.6 A
• Screw terminal
• Standard switching capacity
• Circuit breaker SIRIUS 3RV1
• Worldwide approvals (e.g. IEC and UL/CSA)
• Applications in hazardous areas (ATEX or IEC Ex)
• Available with screw terminals and optionally with an integrated auxiliary switch

Customer benefits:

• Reliable shutdown in the event of a short-circuit
• Protects loads and system against overload
• Safe isolation of the system from the network
• Low heat loss
• Optimized for use in load feeders and for IE3/IE4 motors
• Comprehensive range of accessories standardized for all sizes
• Use of different energy infeed options reduces main circuit wiring
• Simple, efficient and always up to date – SIRIUS modular system
