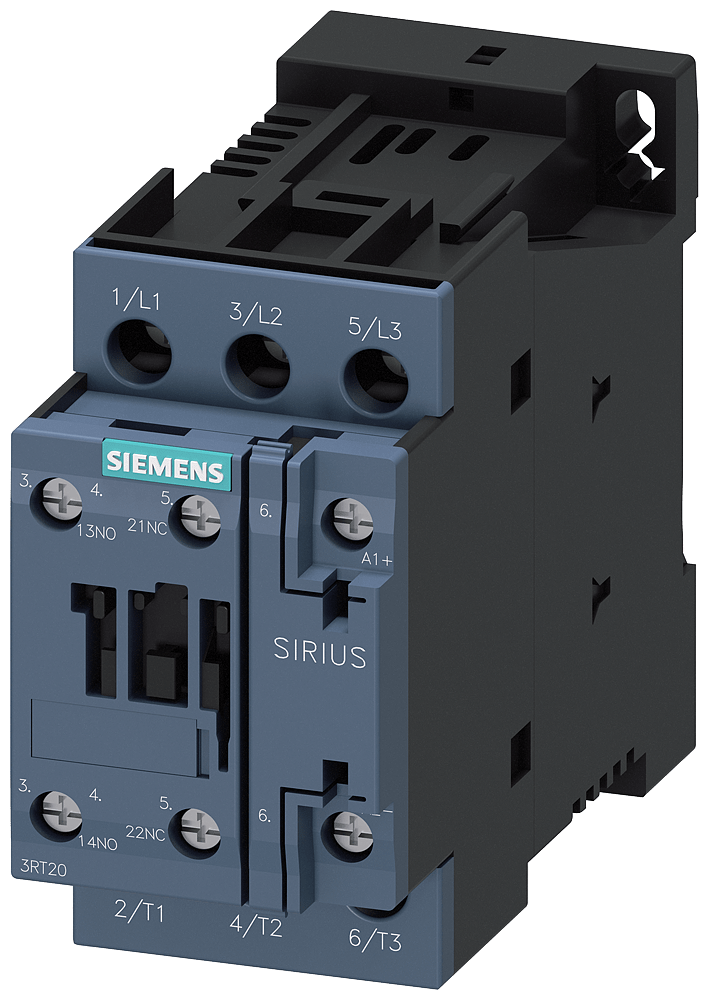

3RT2025-1BB40

Description

Power contactor

The 3RT2 contactors are designed for switching motors with high contact reliability in a compact format.

Technical details:

• Type: power contactor
• Rated utilization category: AC-3e/AC-3
• Rated current: 17 A
• Motor power: 7.5 kW / 400 V
• Poles: 3-pole
• Coil voltage: 24 V DC
• Auxiliary contacts: 1 NO + 1 NC
• Connection type: screw terminal
• Size: S0

Customer benefits:

• Part of the modular SIRIUS system with optimally coordinated products.
• Convincing performance from a compact design with high contact reliability.
• Factory-tested device combinations available.
• Best connection to the automation level for all applications (parallel, via ASi or IO-Link).
• Integrated auxiliary switches reduce design complexity.
• Front-panel terminals simplify wiring.
• Climate-resistant and approved for worldwide use (e.g. IEC and UL/CSA).
• IE3/IE4-ready.
• Available with spring-type terminals for fast, maintenance-free, and vibration-proof connection.
• Standardized range of accessories such as auxiliary switches and auxiliary releases for all sizes.
• Link modules and function modules reduce wiring expenses.
