3RH2911-1DA02
18,70 €
In Stock

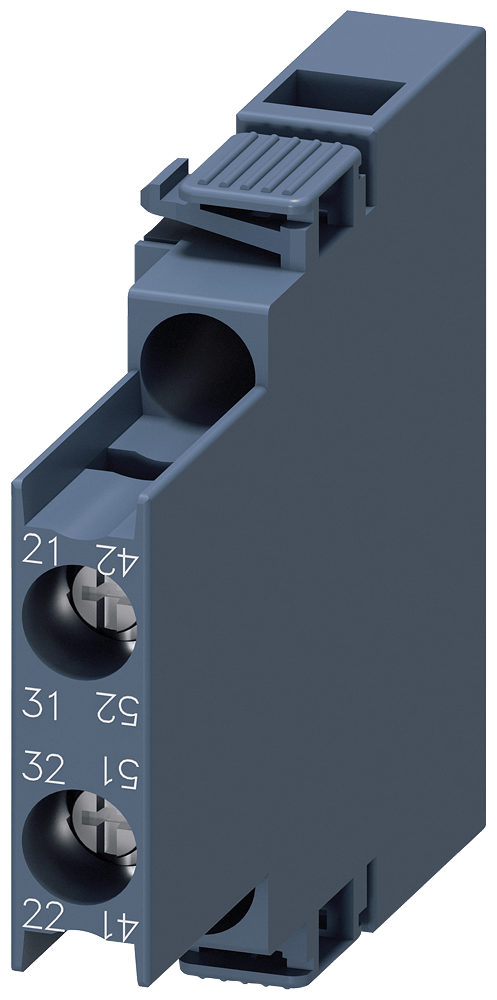

Auxiliary switch lateral, 2 NC, current paths: 1 NC, 1 NC, for motor contactors
In Stock
Description
- Lateral, 2 NC
- On the left: 41/42, 51/52
- On the right: 21/22, 31/32
- Current path: 1 NC, 1 NC
- Screw terminal
- For contactors 3RT2.1
- 3RH29 for the expansion of auxiliary contacts
- Can be laterally mounted onto 3RT2 contactors without tools
- Available in versions for front or lateral mounting
- Up to four instantaneous contacts or up to two leading NO and NC contacts
- Positively driven contacts in 3RH contactor relays or mirror contacts in 3RT power contactors
- Available with screw terminal and spring-type terminal
- SIRIUS modular system
- Simple and efficient installation
- Always up to date
Auxiliary switch
The 3RH29 auxiliary switch is designed for the expansion of auxiliary contacts in control circuits for 3RT2 contactors.
Technical details:
Customer benefits:
Disclaimer: Generated by AI.
Additional information
| Dimensions | 6,6 × 1 × 5,74 cm |
|---|---|
| PriceGroup | 41B |
| Product page (external) | Open link ↗ |
| Zone name | Shipping method | Cost |
|---|
