3RH2440-1AF00

Description

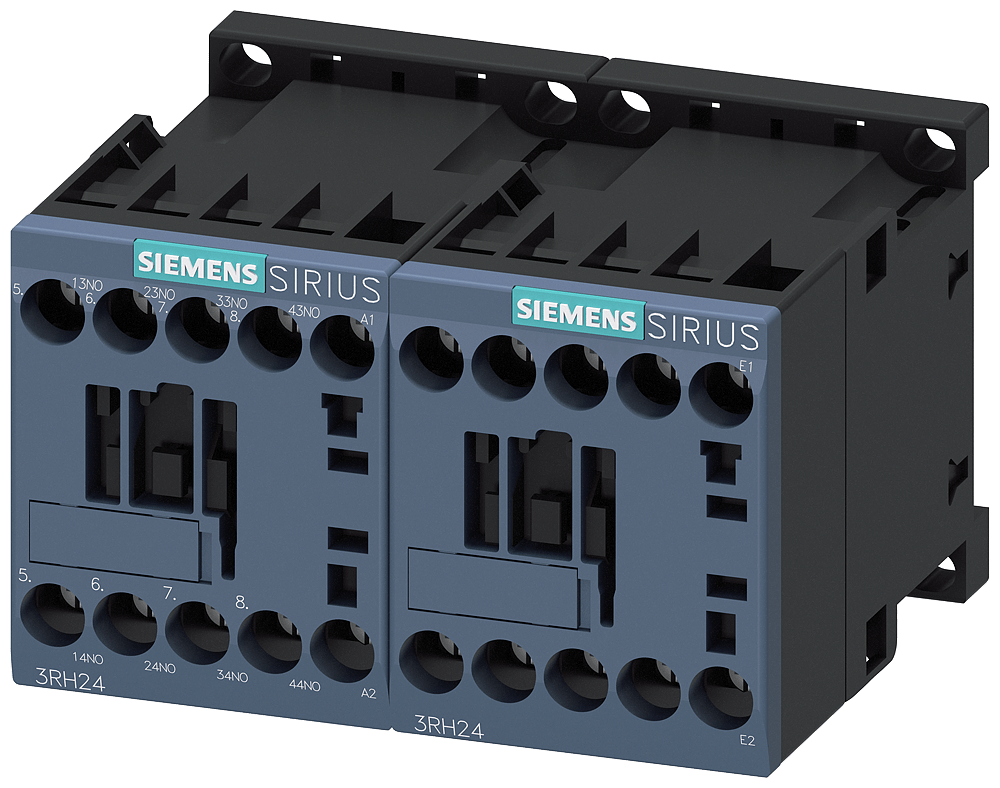

Contactor relay

The SIRIUS 3RH2 is a latched contactor relay designed for switching control signals in control circuits.

Technical details:

• Type: latched
• Contacts: 4 NO
• Voltage: 110 V AC
• Frequency: 50/60 Hz
• Terminal: screw terminal
• Frame size: S00
• Auxiliary contactor: SIRIUS 3RH2

Customer benefits:

• Standard-compliant terminal designations.
• Reliable and time-saving connection technology.
• Simultaneous switching of several auxiliary circuits possible.
• Positively driven operation available for safety applications.
• Climate-resistant with high contact reliability.
• Suitable for worldwide use with corresponding approvals (e.g. IEC and UL/CSA).
• Available with AC or DC operation and with screw or spring-loaded terminals.
• 4-pole design extendable to 8 poles via snap-on auxiliary switches.
• Extensive range of accessories compatible with 3RT2 contactors in sizes S00 to S3.
• Replaces the well-proven 3RH1 series.
• Part of a simple, efficient, and always up-to-date SIRIUS modular system.
