3RH2140-1AB00
47,70 €
In Stock

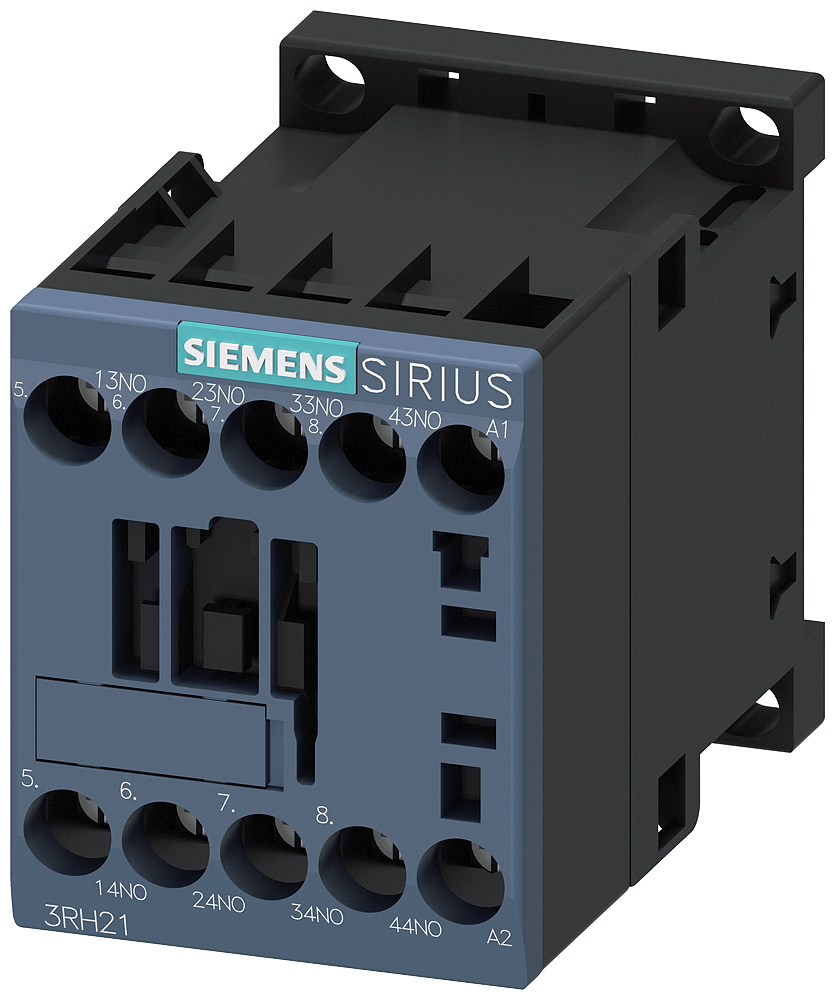

Contactor relay, 4 NO, 24 V AC, 50/60 Hz, S00, screw terminal
In Stock
Description
- 4 NO
- 24 V AC
- 50/60 Hz
- Screw terminal
- Frame size S00
- Available with AC or DC operation
- Basic version is a 4-pole design, extendable up to 8 poles with snap-on auxiliary switches
- Standard-compliant terminal designations
- Climate-resistant
- Approvals: IEC and UL/CSA
- Reliable and time-saving connection technology
- Multiplication of outputs allows simultaneous switching of several auxiliary circuits
- Contacts available with positively driven operation for safety applications
- Extensive range of accessories for the 3RT2 contactors can also be used
- Replaces the well-proven 3RH1 series
- Simple, efficient and always up to date – SIRIUS modular system
Contactor relay
Auxiliary contactor SIRIUS 3RH2 for switching the control signals in the control circuit.
Technical details:
Customer benefits:
Disclaimer: Generated by AI.
Additional information
| Dimensions | 7,3 × 4,5 × 5,75 cm |
|---|---|
| PriceGroup | 41A |
| Product page (external) | Open link ↗ |
