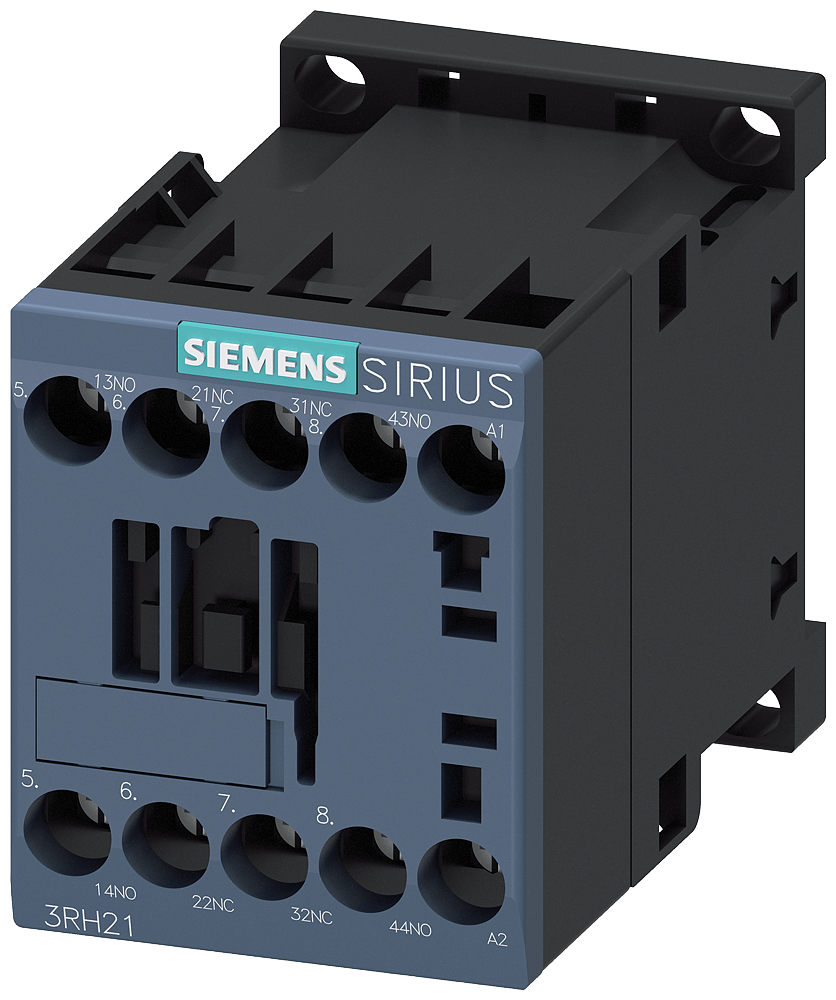

3RH2122-1AF00

Description

Contactor relay

The SIRIUS 3RH2 auxiliary contactor is designed for switching control signals in control circuits.

Technical details:

• 2 NO + 2 NC
• 110 V AC
• 50/60 Hz
• Screw terminal
• Frame size S00
• Auxiliary contactor SIRIUS 3RH2
• Climate-resistant
• High contact reliability
• Approvals: IEC and UL/CSA
• 4-pole design, extendable up to 8 poles
• Operation: AC or DC
• Available with screw or spring-loaded terminals

Customer benefits:

• Standard-compliant terminal designations
• Reliable and time-saving connection technology
• Multiplication of outputs allows simultaneous switching of several auxiliary circuits
• Contacts available with positively driven operation for safety applications
• Extensive range of accessories compatible with both 3RT2 contactors and 3RH2 contactor relays
• Replaces the well-proven 3RH1 series
• Simple, efficient, and always up to date – SIRIUS modular system
