3RF2420-1AC55

Description

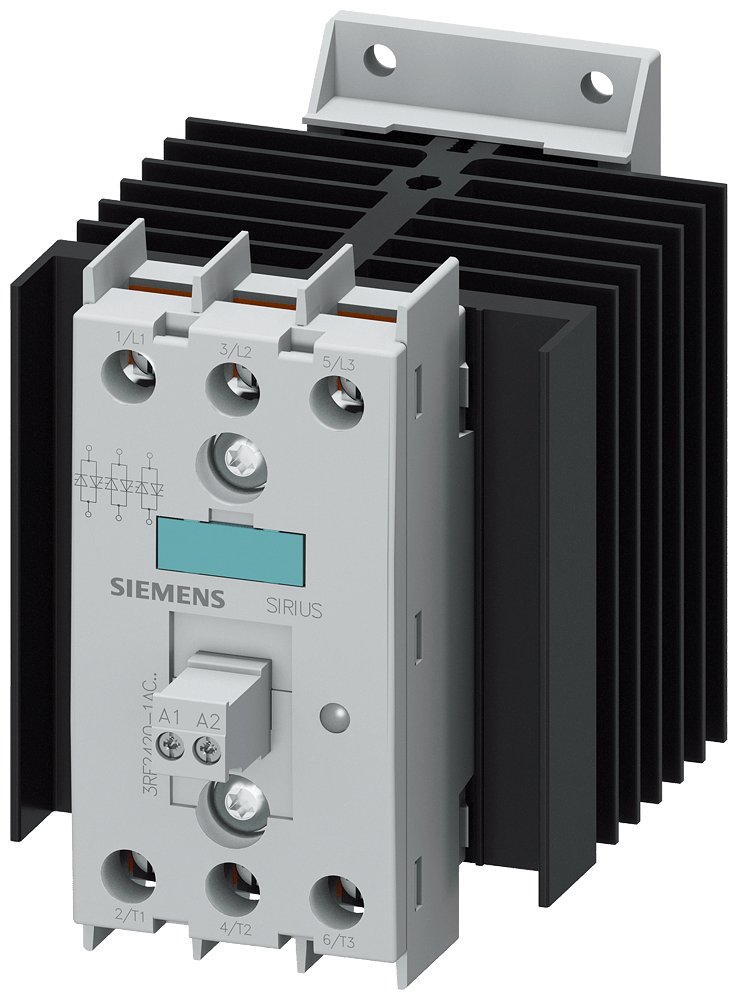

Solid-state contactor 3-phase 3RF2

The solid-state contactor SIRIUS 3RF24 is designed for switching resistive and inductive loads in applications such as heaters or valves in a bottling plant.

Technical details:

• Operating voltage: 48-600 V / 230 V AC
• Switching current: 3-phase 51 / 20 A
• Blocking voltage: 1200 V
• Non-wearing and silent operation
• Integrated heat sink
• Compact design for space saving on DIN rail
• Approved for worldwide use (e.g. IEC and UL/CSA)
• Available as single-phase or three-phase devices
• Designed for AC or DC operation
• Connection types: screw, spring-type or ring terminal lug

Customer benefits:

• Ideal for noise-sensitive areas (offices, hospitals)
• Extremely reliable at high switching frequencies
• Expandable for a wide range of applications using standardized 3RF29 function modules
• Accessories available: control connectors and terminal covers
• Simple, efficient, and always up to date – SIRIUS modular system
