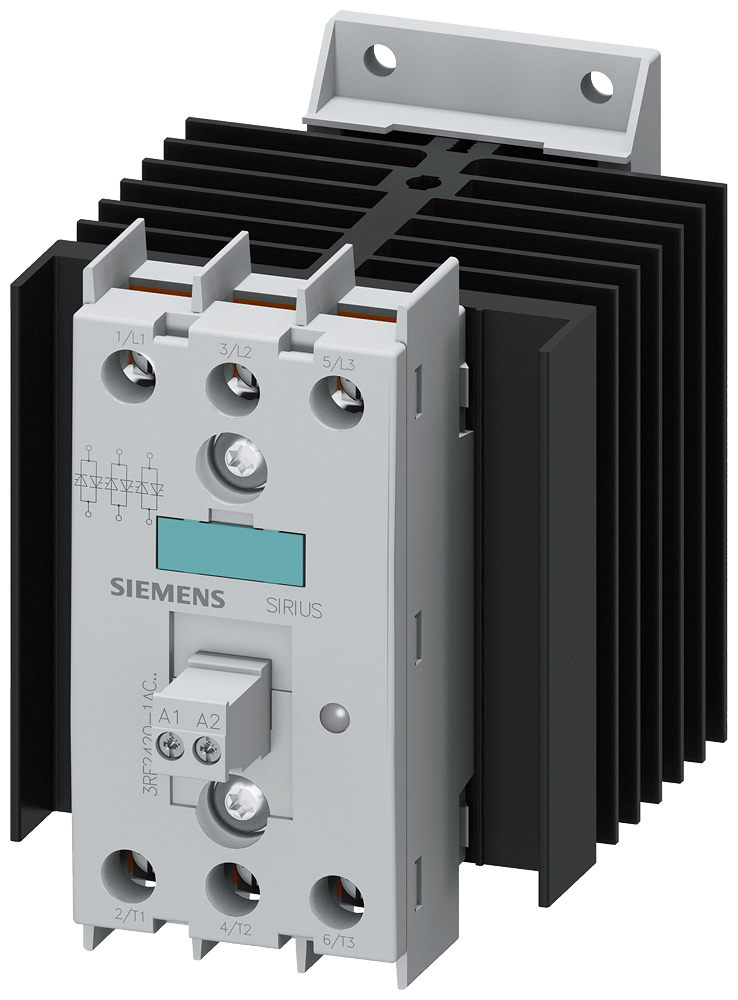

3RF2420-1AC45

Description

Solid-state contactor

The solid-state contactor SIRIUS 3RF24 is designed for switching resistive/inductive loads in various applications.

Technical details:

• 3-phase 3RF2 AC
• 51 / 20 A / 40 °C
• 48-600 V / 4-30 V DC
• Controlled screw terminal
• Blocking voltage 1200 V
• Non-wearing and silent operation
• Integrated heat sink
• Compact design for space-saving on DIN rail
• Approved for worldwide use (e.g. IEC and UL/CSA)
• Available as single-phase or three-phase devices
• Compatible with screw, spring-type or ring terminal lug connections

Customer benefits:

• Ideal for noise-sensitive areas (offices, hospitals)
• Extremely reliable at high switching frequencies
• Can be expanded for a wide range of applications using standardized 3RF29 function modules
• Includes accessories such as control connectors and terminal covers
• Simple, efficient, and always up to date with the SIRIUS modular system
