3RB3036-1UB0

Description

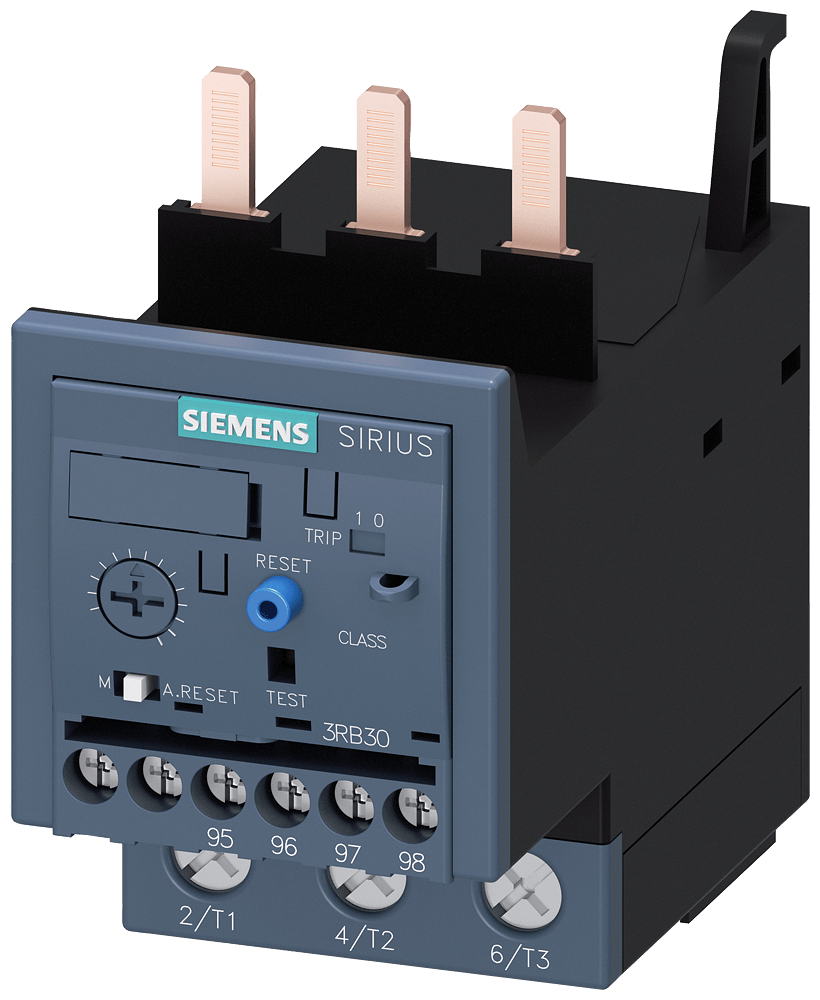

Overload relay 12.5…50 A Electronic

For motor protection, the SIRIUS 3RB3 is designed to provide inverse-time delayed protection against excessive temperature rises due to overload, phase unbalance, or phase failure.

Technical details:

• Size: S2
• Current setting: 12.5…50 A
• Class: 10E
• Main circuit: Screw
• Auxiliary circuit: Screw
• Manual-Automatic-Reset solid-state overload relay
• Low heat loss for energy efficiency
• Worldwide approvals: IEC and UL/CSA
• Applications in hazardous areas: ATEX
• Available with screw or spring-loaded terminals
• Accessories fit all sizes from S00 to S3

Customer benefits:

• Covers complete series of motors with just a few types due to wide current setting ranges and various tripping characteristics.
• Reduces temperature rise in the control cabinet.
• Fast, maintenance-free, and vibration-proof connection.
• Simple, efficient, and always up to date with the SIRIUS modular system.
