3RA6250-0EP30

Description

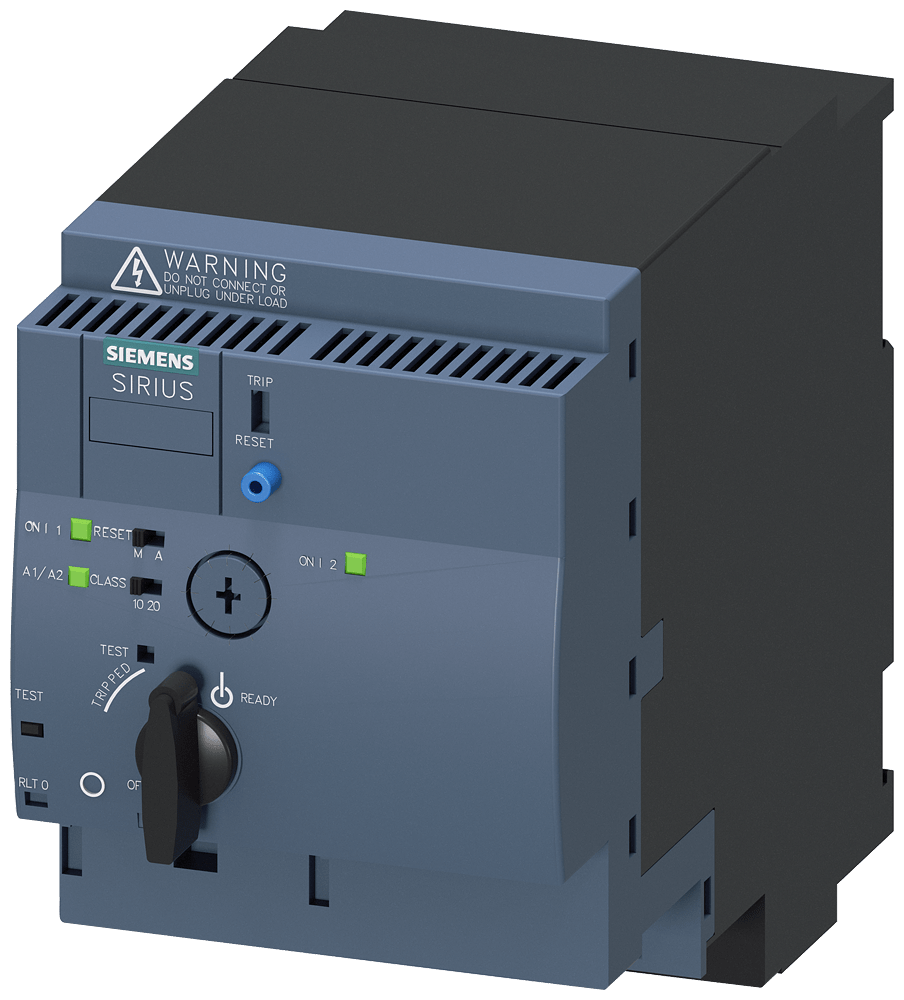

Sirius Compact Load Feeder Reversing Starter

The SIRIUS Compact load feeder reversing starter is designed for the direct starting of standard three-phase motors up to 32 A.

Technical details:

• Voltage: 400 V
• Control Voltage: 110…240 V AC/DC
• Frequency: 50…60 Hz
• Current Rating: 8…32 A
• Protection Class: IP20
• Connection Main Circuit: Plug-in, without terminals
• Connection Control Circuit: Plug-in, without terminals
• Model: SIRIUS 3RA62
• Approval: Worldwide use (e.g. IEC and UL/CSA)

Customer benefits:

• Combines the functions of circuit breaker, contactor and electronic overload relay for high operational reliability.
• Low number of variants simplifies logistics.
• Compact design saves space in the control cabinet.
• Easy replacement thanks to removable terminals.
• Available as direct-on-line or reversing starters with various setting ranges.
• Designed for AC/DC operation with options for screw or spring-loaded terminals or without terminals.
• Communication link via AS-interface with additional accessories available.
• Part of the simple, efficient and always up to date SIRIUS modular system.
