3RA2811-1CW10
83,10 €
In Stock

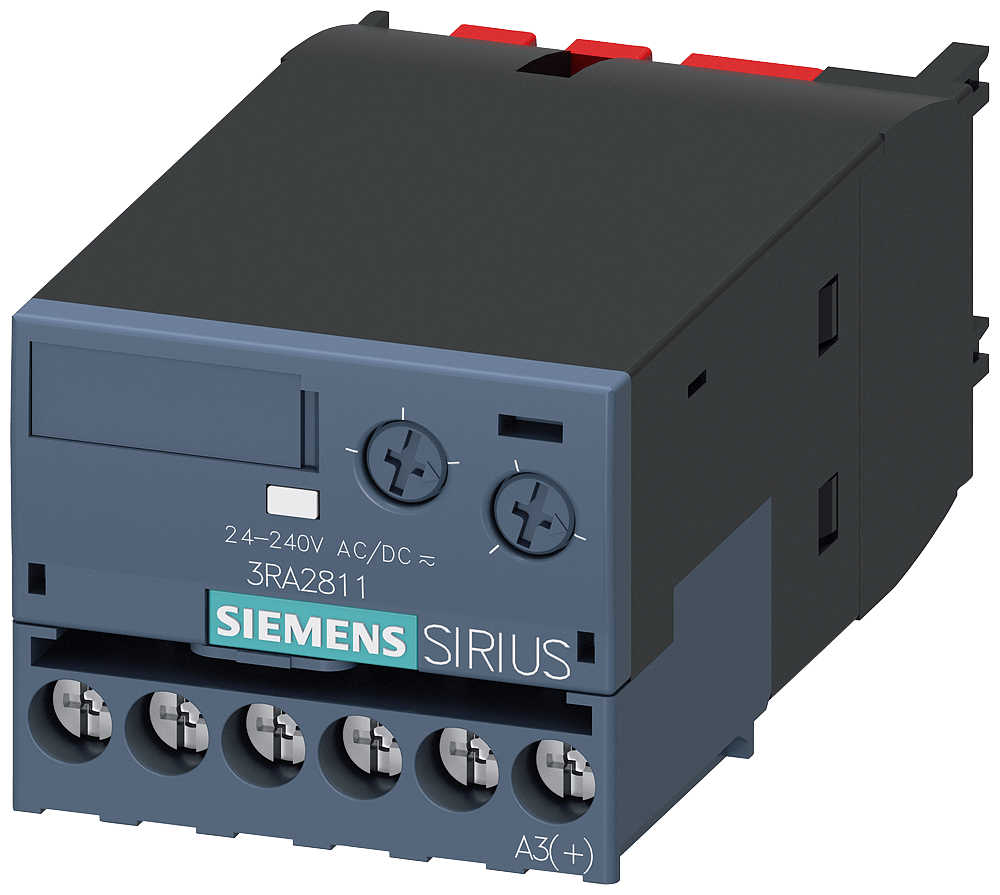

Timing relay, electronic, ON-delay with semiconductor output 24-240 V AC/DC
In Stock
Description
- Time range: 0.05-100 s
- Voltage: 24-240 V AC/DC
- Frequency: 50/60 Hz
- Varistor for attenuation of the contactor coils integrated
- Screw terminal
- Can be snapped onto the front of contactors 3RT201 / 3RT202 and auxiliary contactors 3RH2
- Function module SIRIUS 3RA28 for direct-on-line starting for mounting on 3RT2 contactors and 3RH2 contactor relays
- Outputs: 1 NO + 1 NC or 1 C
- Terminal types: Screw or spring-loaded
- Flexible wide voltage range: 24-240 V AC/DC
- Simple plug-in facility requires no tools, avoiding wiring errors and reducing testing costs.
- Front mounting on devices saves space on the DIN rail.
- No additional protective circuit is necessary.
- International approvals (e.g. IEC, CCC, UL/CSA) allow for worldwide use.
- Wiring kits and a sealable cover are available for the function modules.
Electronic timing relay
An ON-delay electronic timing relay with semiconductor output designed for time delay applications in control and protection circuits.
Technical details:
Customer benefits:
Disclaimer: Generated by AI.
Additional information
| Dimensions | 7,4 × 4,5 × 3,8 cm |
|---|---|
| PriceGroup | 41B |
| Product page (external) | Open link ↗ |
